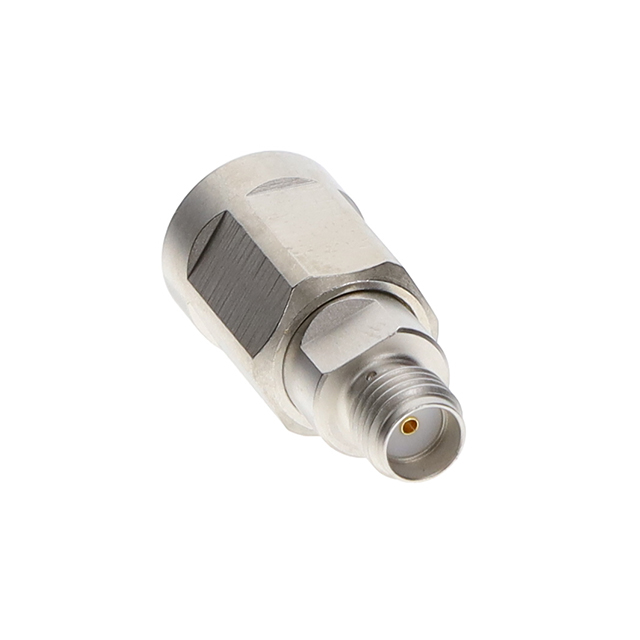

32K189-S00N5

Active

Rosenberger

SMA ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

SMA ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	32K189-S00N5

Adapter Series	NEX10 to SMA
Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	NEX10 Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	12 GHz
Impedance	50 Ohms
Insertion Loss	0.17 dB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Conversion Type	Mounting Type	Center Contact Material	Frequency - Max [Max]	Center Contact Plating	Adapter Series	Fastening Type	Style	Body Material	Adapter Type	Body Finish	Dielectric Material	Impedance	Insertion Loss	Operating Temperature [Min]	Operating Temperature [Max]	Convert From (Adapter End)	Convert To (Adapter End)
Rosenberger 32K189-S00N5	Between Series	Free Hanging (In-Line)	Beryllium Copper	12 GHz	Gold	NEX10 to SMA	Snap-On Threaded	Straight	Brass	Plug to Jack	White Bronze	Polytetrafluoroethylene (PTFE)	50 Ohms	0.17 dB	-55 °C	125 °C	NEX10 Plug Male Pin	Female Socket SMA Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector NEX10 Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
