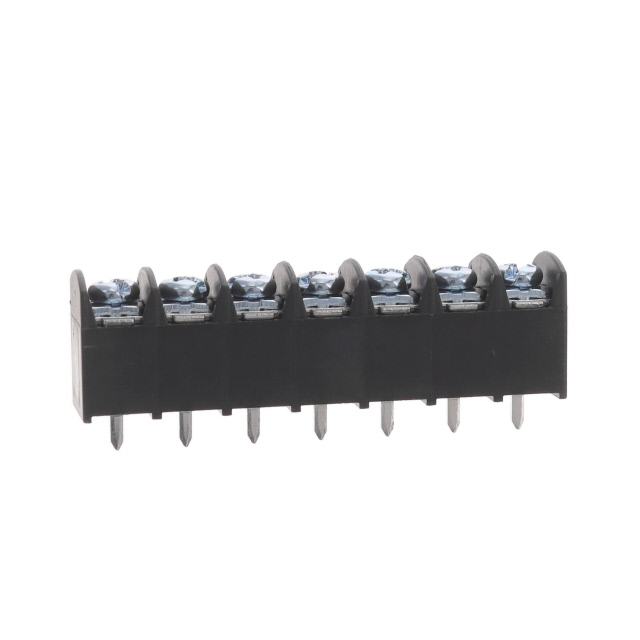

YK3210703000G

Active

AMPHENOL ANYTEK

CONN BARRIER STRIP 7CIRC 0.3"

Deep-Dive with AI

Search across all available documentation for this part.

YK3210703000G

Active

AMPHENOL ANYTEK

CONN BARRIER STRIP 7CIRC 0.3"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.32
		10	$ 1.00
		25	$ 0.93
		50	$ 0.83
		100	$ 0.81
		250	$ 0.72

Description

General part information

YK321 Series

7 Circuit 0.300" (7.62mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YK3210703000G	YK321 Series

Barrier Type	2 Wall (Dual)	2 Wall (Dual)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	15 A	15 A
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	7	6 - 30
Number of Rows	1	1
Number of Wire Entries	7	6 - 30
Number of Wire Entries	-	22 - 27
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.3 in	0.3 in
Pitch [x]	7.62 mm	7.62 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	14 AWG	14 AWG

YK321 Series

CONN BARRIER STRIP 18CIRC 0.3"

Part	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Number of Circuits	Terminal Screw Finish	Top Termination	Barrier Type	Voltage Rating	Terminal Block Type	Material - Insulation	Color	Terminal Screw Material	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Number of Wire Entries	Bottom Termination	Number of Rows	Current Rating (Amps)	Material Flammability Rating	Number of Wire Entries [custom]
AMPHENOL ANYTEK YK3211803000G	-40 °C	115 °C	0.3 in	7.62 mm	18	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG	18	PC Pin	1	15 A	UL94 V-0
AMPHENOL ANYTEK YK3212003000G	-40 °C	115 °C	0.3 in	7.62 mm	20	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG	20	PC Pin	1	15 A	UL94 V-0
AMPHENOL ANYTEK YK3211603000G	-40 °C	115 °C	0.3 in	7.62 mm	16	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG	16	PC Pin	1	15 A	UL94 V-0
AMPHENOL ANYTEK YK3212103000G	-40 °C	115 °C	0.3 in	7.62 mm	21	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG	21	PC Pin	1	15 A	UL94 V-0
AMPHENOL ANYTEK YK3212403000G	-40 °C	115 °C	0.3 in	7.62 mm	24	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG		PC Pin	1	15 A	UL94 V-0
AMPHENOL ANYTEK YK3211103000G	-40 °C	115 °C	0.3 in	7.62 mm	11	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG	11	PC Pin	1	15 A	UL94 V-0
AMPHENOL ANYTEK YK3210703000G	-40 °C	115 °C	0.3 in	7.62 mm	7	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG	7	PC Pin	1	15 A	UL94 V-0
AMPHENOL ANYTEK YK3211303000G	-40 °C	115 °C	0.3 in	7.62 mm	13	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG	13	PC Pin	1	15 A	UL94 V-0
AMPHENOL ANYTEK YK3212303000G	-40 °C	115 °C	0.3 in	7.62 mm	23	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG		PC Pin	1	15 A	UL94 V-0	23
AMPHENOL ANYTEK YK3211903000G	-40 °C	115 °C	0.3 in	7.62 mm	19	Zinc	Screws with Captive Plate	2 Wall (Dual)	300 VDC	Barrier Block	Thermoplastic	Black	Steel	Through Hole	14 AWG	22 AWG	19	PC Pin	1	15 A	UL94 V-0
