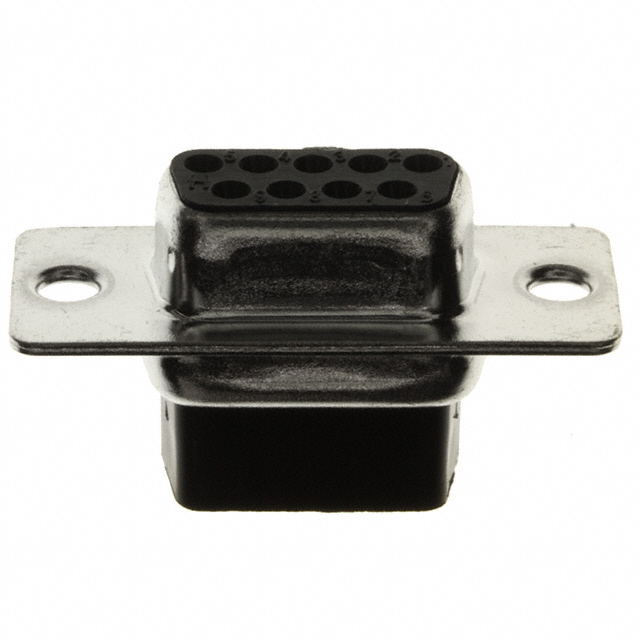

170-009-272L000

Obsolete

NorComp Inc.

CONN D-SUB HOUSING RCPT 9POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

170-009-272L000

Obsolete

NorComp Inc.

CONN D-SUB HOUSING RCPT 9POS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

170-009 Series

Receptacle for Female Contacts Housing D-Sub Connector 9 Position

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	170-009-272L000	170-009 Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Receptacle for Female Contacts	Receptacle for Female Contacts, Plug for Male Contacts
Contact Type	Signal	Signal
Dielectric Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Polybutylene Terephthalate (PBT), Glass Filled
Features	-	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded), Cable Side, 4-40
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-50 °C	-50 °C
Shell Material, Finish	-	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1

170-009 Series

D SUB CONNECTOR HOUSING, 9 POSITIONS, D SUB, DE, 170 SERIES, RECEPTACLE, STEEL BODY

Part	Note	Flange Feature	Number of Rows	Contact Type	Shell Material, Finish	Connector Style	Dielectric Material	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Connector Type	Features
NorComp Inc. 170-009-273L000	Contacts Not Included	Housing/Shell (Unthreaded)	2	Signal	Nickel Plated, Steel	D-Sub	Polybutylene Terephthalate (PBT)	Black	DE, E	1	-50 °C	125 °C	Free Hanging (In-Line)	9	Receptacle for Female Contacts
NorComp Inc. 170-009-173L020	Contacts Not Included	Cable Side	2	Signal	Nickel Plated, Steel	D-Sub	Polybutylene Terephthalate (PBT), Glass Filled		DE, E	1	-50 °C	125 °C	Free Hanging (In-Line)	9	Plug for Male Contacts	Grounding Indents
NorComp Inc. 170-009-173L030	Contacts Not Included	4-40	2	Signal	Nickel Plated, Steel	D-Sub	Polybutylene Terephthalate (PBT), Glass Filled		DE, E	1	-50 °C	125 °C	Free Hanging (In-Line)	9	Plug for Male Contacts	Grounding Indents
NorComp Inc. 170-009-272L000	Contacts Not Included	Housing/Shell (Unthreaded)	2	Signal		D-Sub	Polybutylene Terephthalate (PBT)	Black	DE, E	1	-50 °C	125 °C	Free Hanging (In-Line)	9	Receptacle for Female Contacts
NorComp Inc. 170-009-273L010	Contacts Not Included	Cable Side	2	Signal	Nickel Plated, Steel	D-Sub	Polybutylene Terephthalate (PBT)	Black	DE, E	1	-50 °C	125 °C	Free Hanging (In-Line)	9	Receptacle for Female Contacts
NorComp Inc. 170-009-172L010	Contacts Not Included	Cable Side	2	Signal		D-Sub	Polybutylene Terephthalate (PBT)	Black	DE, E	1	-50 °C	125 °C	Free Hanging (In-Line)	9	Plug for Male Contacts
NorComp Inc. 170-009-173L010	Contacts Not Included	Cable Side	2	Signal	Nickel Plated, Steel	D-Sub	Polybutylene Terephthalate (PBT), Glass Filled		DE, E	1	-50 °C	125 °C	Free Hanging (In-Line)	9	Plug for Male Contacts	Grounding Indents
NorComp Inc. 170-009-272L010	Contacts Not Included	Cable Side	2	Signal		D-Sub	Polybutylene Terephthalate (PBT)	Black	DE, E	1	-50 °C	125 °C	Free Hanging (In-Line)	9	Receptacle for Female Contacts
