10180-6000EC
Active3M

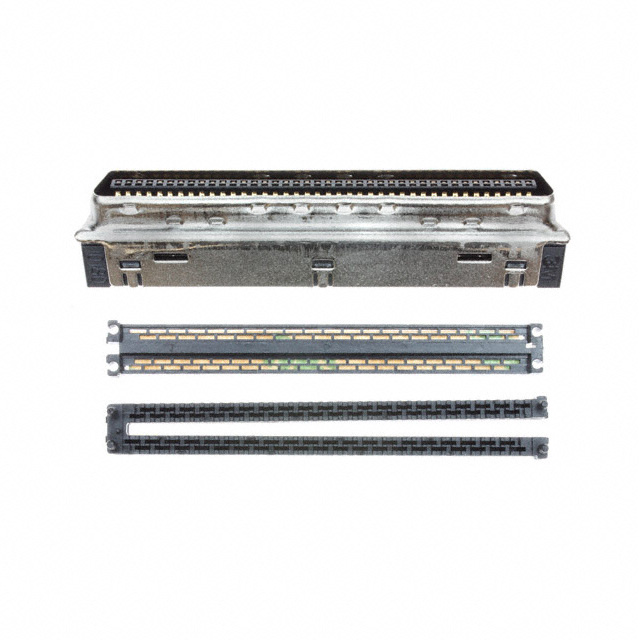

CONN MINI D RIBBON PL 80 POS 1.27MM IDT RA CABLE MOUNT 80 TERMINAL 1 PORT
Deep-Dive with AI
Search across all available documentation for this part.
10180-6000EC
Active3M
CONN MINI D RIBBON PL 80 POS 1.27MM IDT RA CABLE MOUNT 80 TERMINAL 1 PORT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 10180-6000EC | 10180 Series |
|---|---|---|
| Connector Style | - | Center Strip Contacts |
| Connector Type | - | Plug |
| Contact Finish | - | Gold |
| Contact Finish Thickness | - | 0.76 Ám |
| Contact Finish Thickness | - | 30 Áin |
| Features | - | Shielded |
| Mounting Type | - | Free Hanging (In-Line) |
| null | - | |
| Number of Positions | - | 80 |
| Number of Rows | - | 2 |
| Termination | - | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
10180 Series
CONN MINI D RIBBON PL 80 POS 1.27MM IDT RA CABLE MOUNT 80 TERMINAL 1 PORT
| Part | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Termination | Features | Connector Type | Contact Finish | Mounting Type | Number of Positions | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|
Center Strip Contacts | 0.76 Ám | 30 Áin | IDC | Shielded | Plug | Gold | Free Hanging (In-Line) | 80 | 2 | |
Description
General part information
10180 Series
80 Position Plug Connector Free Hanging (In-Line) IDC
