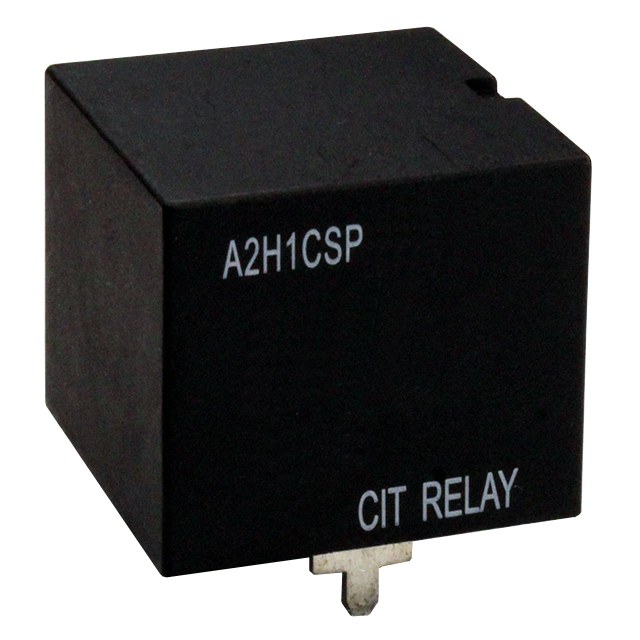

A2H1CSP24VDC1.6

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 24V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPDT 50A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Termination Style	Switching Voltage	Must Operate Voltage	Release Time	Coil Voltage	Contact Rating (Current)	Contact Material	Mounting Type	Coil Current	Operate Time	Must Release Voltage	Coil Type	Coil Resistance	Features	Operating Temperature [Max]	Operating Temperature [Min]
CIT Relay and Switch A2H1CSP12VDC1.6R	SPDT (1 Form C)	PC Pin	75 VDC	7.8 VDC	10 ms	12 VDC	50 A	Silver Tin Oxide (AgSnO)	Through Hole	150 mA	10 ms	1.2 VDC	Non Latching	80 Ohms	Resistor	125 °C	-40 °C
CIT Relay and Switch A2H1CSP12VDC1.6	SPDT (1 Form C)	PC Pin	75 VDC	7.8 VDC	10 ms	12 VDC	50 A	Silver Tin Oxide (AgSnO)	Through Hole	133.3 mA	10 ms	1.2 VDC	Non Latching	90 Ohms		125 °C	-40 °C
CIT Relay and Switch A2H1CSP24VDC1.6	SPDT (1 Form C)	PC Pin	75 VDC		10 ms	24 VDC	50 A	Silver Tin Oxide (AgSnO)	Through Hole	66.7 mA	10 ms	2.4 VDC	Non Latching	360 Ohms		125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPDT 50A 24V

Technical documentation and resources
