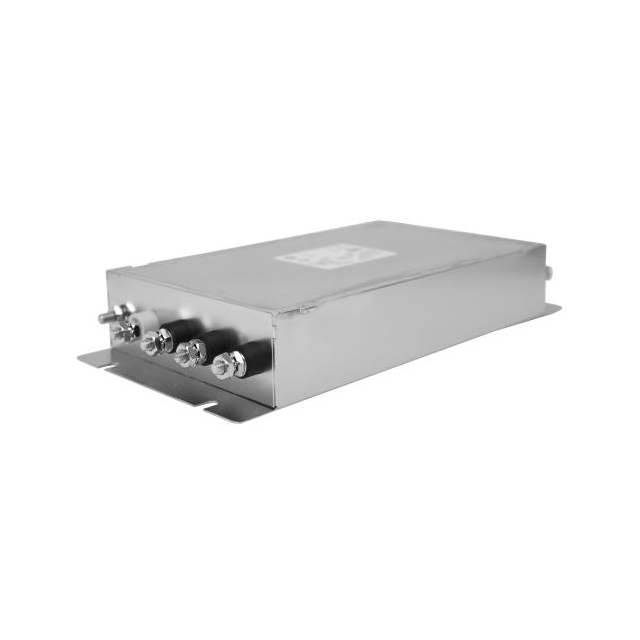

RPC1197-30

Active

Astrodyne TDI

LINE FILTER 250VAC 30A CHASSIS

Search across all available documentation for this part.

Active

Astrodyne TDI

LINE FILTER 250VAC 30A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	RPC1197-30

Applications	General Purpose
Approval Agency	CSA, cURus, SEMKO, ENEC, CE
Configuration	Two Stage
Current	30 A
Filter Type	Three Phase (Wye)
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Threaded Post (10-32)
Voltage - Rated AC	250 V
Voltage - Rated AC (Phase to Ground/Neutral)	3.5 kV

Part	Voltage - Rated AC	Termination Style	Applications	Approval Agency	Filter Type	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC (Phase to Ground/Neutral)	Mounting Type	Current	Operating Temperature [custom]
Astrodyne TDI RPC1197-30	250 V	Threaded Post (10-32)	General Purpose	CE CSA cURus ENEC SEMKO	Three Phase (Wye)	Two Stage	60 Hz	50 Hz	3.5 kV	Chassis Mount	30 A	-25 °C 100 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 196.68

General part information

Three Phase (Wye) EMC/EMI Line Filter 30 A 250V 50/60Hz Two Stage Threaded Post (10-32)
