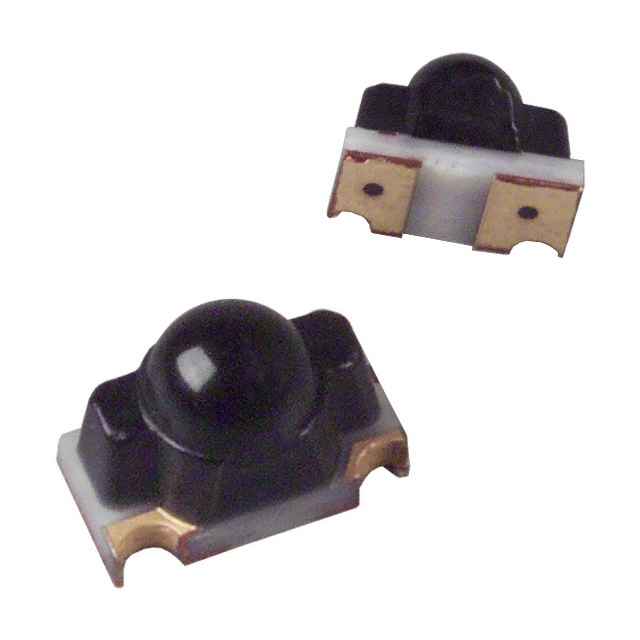

PT100MF0MP1

Active

SHARP/Socle Technology

SENSOR PHOTO 910NM UNIVERSAL SMD

Search across all available documentation for this part.

Active

SHARP/Socle Technology

SENSOR PHOTO 910NM UNIVERSAL SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	PT100MF0MP1	PT100MF0 Series

Current - Collector (Ic) (Max) [Max]	20 mA	20 mA
Current - Dark (Id) (Max) [Max]	100 nA	100 nA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Orientation	Universal	Universal
Package / Case	2-SMD, No Lead	2-SMD, No Lead
Power - Max [Max]	75 mW	75 mW
Viewing Angle	30 °	30 °
Voltage - Collector Emitter Breakdown (Max) [Max]	35 V	35 V
Wavelength	910 nm	910 nm

SENSOR PHOTO 910NM UNIVERSAL SMD

Part	Orientation	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Viewing Angle	Mounting Type	Package / Case	Wavelength	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Dark (Id) (Max) [Max]
SHARP/Socle Technology PT100MF0MP1	Universal	75 mW	20 mA	30 °	Surface Mount	2-SMD, No Lead	910 nm	35 V	-30 ░C	85 °C	100 nA
SHARP/Socle Technology PT100MF0MP	Universal	75 mW	20 mA	30 °	Surface Mount	2-SMD, No Lead	910 nm	35 V	-30 ░C	85 °C	100 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Phototransistors 910nm Universal 2-SMD, No Lead
