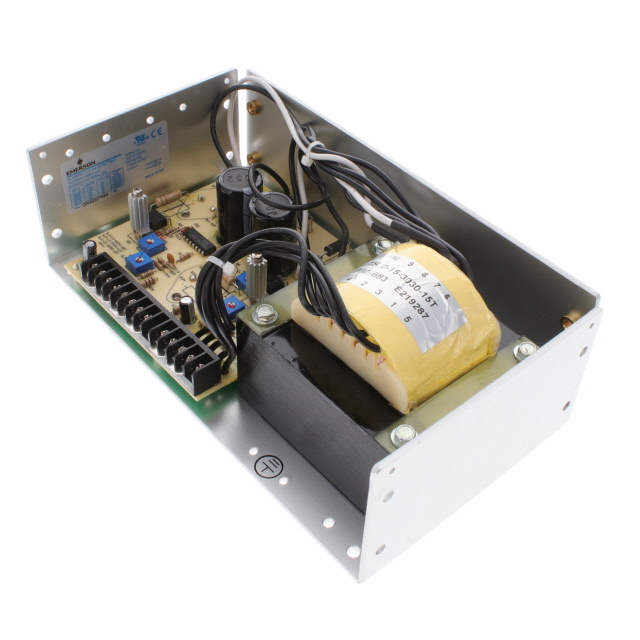

SLD-15-3030-15T

SolaHD

AC/DC CONVERTER +/-15V 90W

Search across all available documentation for this part.

SolaHD

AC/DC CONVERTER +/-15V 90W

Technical Specifications

Parameters and characteristics for this part

Specification	SLD-15-3030-15T

Applications	ITE (Commercial)
Approval Agency	CSA, cURus
Current - Output 1	3 A
Current - Output 2	3 A
Features	Remote Sense, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	2
Power (Watts)	90 W
Size / Dimension [x]	9 in
Size / Dimension [x]	228.6 mm
Size / Dimension [y]	4.87 in
Size / Dimension [y]	123.7 mm
Size / Dimension [z]	2.75 in
Size / Dimension [z]	69.9 mm
Type	Open Frame
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	15 V
Voltage - Output 2	-15 V

Part	Applications	Features	Voltage - Output 2	Type	Current - Output 2	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Current - Output 1	Number of Outputs	Voltage - Output 1	Mounting Type	Approval Agency
SolaHD SLD-15-3030-15T	ITE (Commercial)	Adjustable Output Remote Sense	-15 V	Open Frame	3 A	240 VAC	100 VAC	4.87 in	9 in	2.75 in	69.9 mm	228.6 mm	123.7 mm	90 W	3 A	2	15 V	Chassis Mount	CSA cURus

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 2 Output 15V -15V 100 ~ 240 VAC Input
