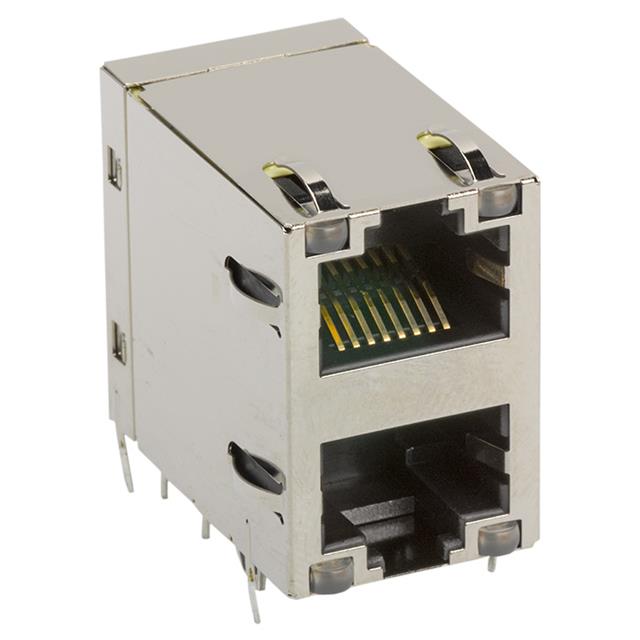

1840866-1

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T PCB

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 2PORT 1000 BASE-T PCB

Technical Specifications

Parameters and characteristics for this part

CONN JACK 2PORT 1000 BASE-T PCB

Part	Connector Type	Number of Cores per Jack	Contact Finish	Shield Material	Housing Material	Contact Material	LED Color	Orientation	Mounting Type	Features	Termination	Applications	Contact Finish Thickness	Contact Finish Thickness	Tab Direction	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Height Above Board	Height Above Board	Number of Ports
TRP Connector B.V. 1840866-1	RJ45	8	Gold	Brass	Thermoplastic	Phosphor Bronze	Does Not Contain LED	90 °	Through Hole	Board Guide	Solder	10/100/1000 Base-T, AutoMDIX	50 µin	1.27 µm	Up and Down	Shielded, EMI Finger	70 °C	0 °C	2	25.5 mm	1.004 in	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	270	$ 11.05

General part information

2 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
