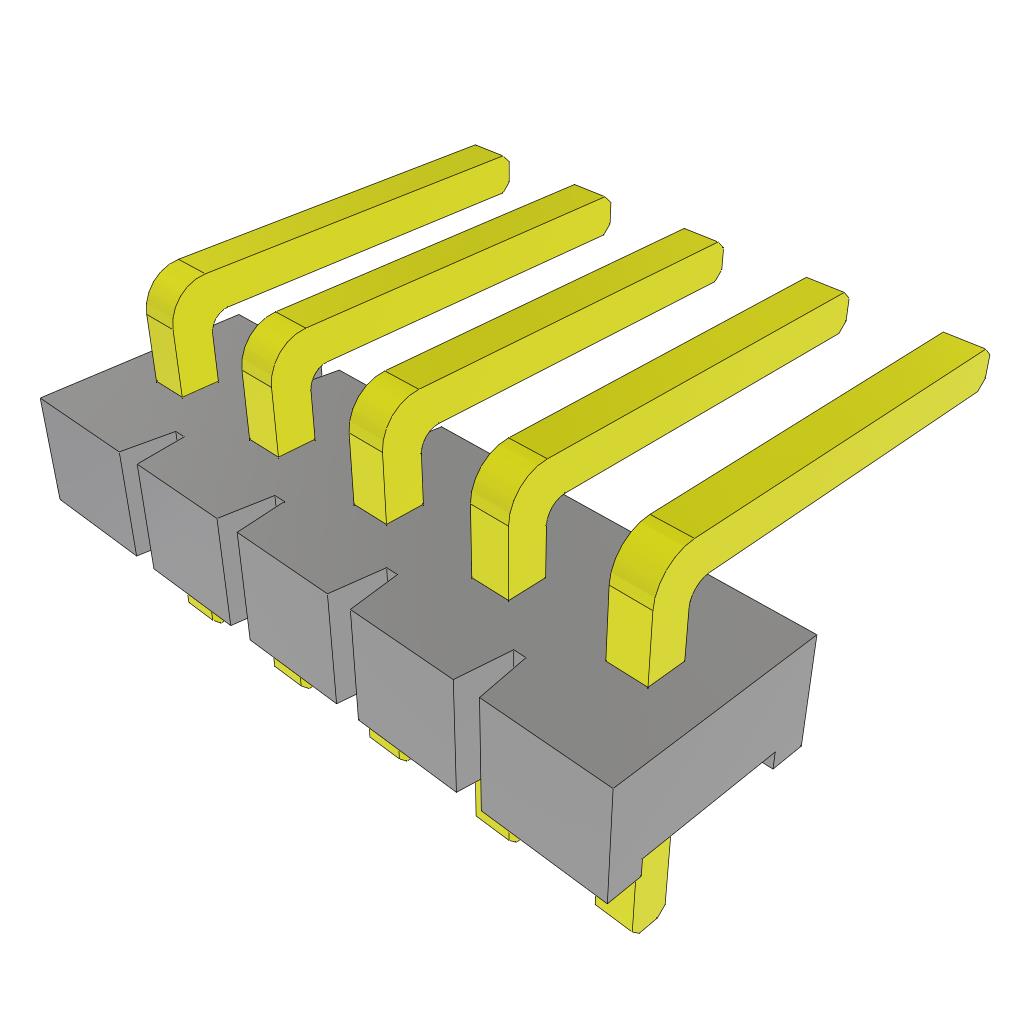

HFWJ-05-02-T-S-RA
ActiveSamtec Inc.
.156" HIGH-TEMP POWER TERMINAL S
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HFWJ-05-02-T-S-RA
ActiveSamtec Inc.
.156" HIGH-TEMP POWER TERMINAL S
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HFWJ-05-02-T-S-RA |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 4.45 mm |
| Contact Length - Post | 0.175 in |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 6.7 A |
| Fastening Type | Push-Pull |
| Insulation Color | Natural |
| Insulation Height | 6.35 mm |
| Insulation Height | 0.25 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.156 in |
| Pitch - Mating | 3.96 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
HFWJ-05 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Length - Post | Contact Length - Post | Overall Contact Length [x] | Overall Contact Length [x] | Contact Material | Current Rating (Amps) | Insulation Height | Insulation Height | Material Flammability Rating | Number of Positions Loaded | Contact Type | Contact Length - Mating | Contact Length - Mating [x] | Fastening Type | Termination | Number of Rows | Contact Shape | Connector Type | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Insulation Color | Shrouding | Insulation Material | Contact Length - Mating [x] | Overall Contact Length | Overall Contact Length | Features | Contact Length - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 105 ░C | -55 °C | Through Hole | 4.45 mm | 0.175 in | 1.109 in | 28.17 mm | Phosphor Bronze | 6.7 A | 0.125 in | 3.18 mm | UL94 V-0 | All | Male Pin | 20.55 mm | 0.809 " | Push-Pull | Solder | 1 | Square | Header | Tin | 0.156 in | 3.96 mm | Natural | Unshrouded | Liquid Crystal Polymer (LCP) | |||||
Samtec Inc. | 105 ░C | -55 °C | Through Hole | 4.45 mm | 0.175 in | Phosphor Bronze | 6.7 A | 0.125 in | 3.18 mm | UL94 V-0 | All | Male Pin | 0.5 in | Push-Pull | Solder | 1 | Square | Header | Tin | 0.156 in | 3.96 mm | Natural | Unshrouded | Liquid Crystal Polymer (LCP) | 12.7 mm | 0.8 in | 20.32 mm | |||||
Samtec Inc. | 105 ░C | -55 °C | Surface Mount | Phosphor Bronze | 6.7 A | 0.125 in | 3.18 mm | UL94 V-0 | All | Male Pin | 11.73 mm | Push-Pull | Solder | 1 | Square | Header | Tin | 0.156 in | 3.96 mm | Natural | Unshrouded | Liquid Crystal Polymer (LCP) | Pick and Place | 0.462 in | ||||||||
Samtec Inc. | 105 ░C | -55 °C | Surface Mount | Phosphor Bronze | 6.7 A | 0.125 in | 3.18 mm | UL94 V-0 | All | Male Pin | 10.46 mm | Push-Pull | Solder | 1 | Square | Header | Tin | 0.156 in | 3.96 mm | Natural | Unshrouded | Liquid Crystal Polymer (LCP) | 0.412 in | |||||||||
Samtec Inc. | 105 ░C | -55 °C | Through Hole Right Angle | 4.45 mm | 0.175 in | Phosphor Bronze | 6.7 A | 0.25 in | 6.35 mm | UL94 V-0 | All | Male Pin | Push-Pull | Solder | 1 | Square | Header | Tin | 0.156 in | 3.96 mm | Natural | Unshrouded | Liquid Crystal Polymer (LCP) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.24 | |
Description
General part information
HFWJ-05 Series
Connector Header Through Hole, Right Angle 5 position 0.156" (3.96mm)
