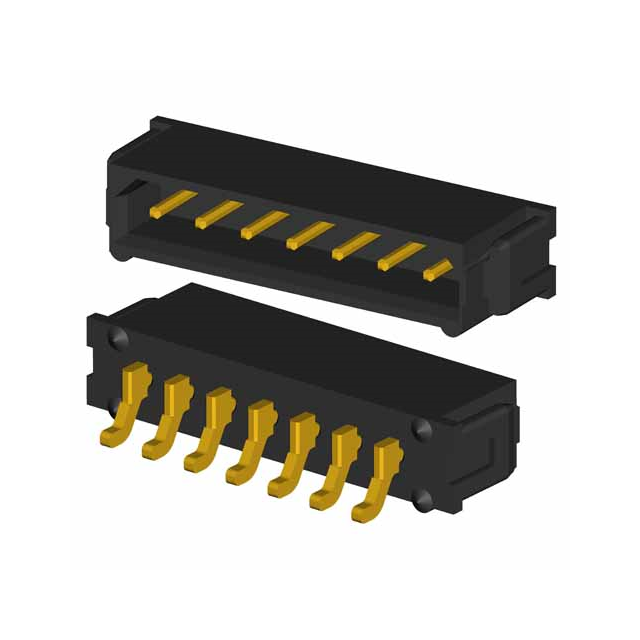

M80-8370645

Obsolete

Harwin Inc.

CONN HEADER SMD R/A 6POS 2MM

Search across all available documentation for this part.

Obsolete

Harwin Inc.

CONN HEADER SMD R/A 6POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8370645

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height [custom]	0.157 in
Insulation Height [custom]	4 mm
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 V

Part	Mounting Type	Features	Insulation Material	Insulation Color	Pitch - Mating [x]	Pitch - Mating [x]	Voltage Rating	Contact Finish - Mating	Contact Shape	Contact Material	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Height [custom]	Insulation Height [custom]	Style	Current Rating (Amps)	Number of Rows	Material Flammability Rating	Number of Positions Loaded	Connector Type	Termination	Contact Type	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions
Harwin Inc. M80-8370345	Surface Mount Right Angle	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	Black	0.079 in	2 mm	800 V	Gold	Circular	Copper Alloy	Gold	-55 °C	125 °C	29.5 Áin	0.75 Ám	Latch Holder	0.157 in	4 mm	Board to Board Cable	2.2 A	1	UL94 V-0	All	Header	Solder	Male Pin	Shrouded - 4 Wall
Harwin Inc. M80-8370742	Surface Mount Right Angle	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	Black	0.079 in	2 mm	800 V	Gold	Circular	Copper Alloy	Tin	-55 °C	125 °C	29.5 Áin	0.75 Ám	Latch Holder	0.157 in	4 mm	Board to Board Cable	2.2 A	1	UL94 V-0	All	Header	Solder	Male Pin	Shrouded - 4 Wall	0.3 µm	12 µin	7
Harwin Inc. M80-8370645	Surface Mount Right Angle	Strain Relief Clips	Polyphenylene Sulfide (PPS) Glass Filled	Black	0.079 in	2 mm	800 V	Gold	Circular	Copper Alloy	Gold	-55 °C	125 °C	29.5 Áin	0.75 Ám	Latch Holder	0.157 in	4 mm	Board to Board Cable	2.2 A	1	UL94 V-0	All	Header	Solder	Male Pin	Shrouded - 4 Wall			6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
