A9CCA-1002E
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFK10A/AE10/AFK10A
Deep-Dive with AI
Search across all available documentation for this part.
A9CCA-1002E
ActiveTE Connectivity AMP Connectors
FLEX CABLE - AFK10A/AE10/AFK10A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A9CCA-1002E | A9CCA Series |
|---|---|---|
| Contact Termination | Receptacle with Latch to Receptacle with Latch | Receptacle with Latch to Receptacle with Latch |
| Length | - | 3 - 5 in |
| Length | - | 76.2 - 203.2 mm |
| Length | - | 6 - 8 in |
| Length | - | 101.6 - 127 mm |
| Number of Positions | 10 | 2 - 22 |
| Number of Positions | - | 16 |
| Pitch [x] | 0.05 in | 0.05 - 0.1 in |
| Pitch [x] | 1.27 mm | 1.27 - 2.54 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.00 | |
| 10 | $ 8.29 | |||
| 25 | $ 7.69 | |||
| 50 | $ 7.27 | |||
| 100 | $ 6.87 | |||
| 250 | $ 6.38 | |||
| 500 | $ 6.03 | |||
| 1000 | $ 5.71 | |||
A9CCA Series
FLEX CABLE - AFG13A/AF13/AFG13A
...
| Part | Number of Positions | Pitch [x] | Pitch [x] | Contact Termination | Length [x] | Length | Length | Length [x] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A9CCA-1303F | 13 | 2.54 mm | 0.1 in | Receptacle with Latch to Receptacle with Latch | 3 in | 76.2 mm | |||
TE Connectivity AMP Connectors A9CCA-1208F | 12 | 2.54 mm | 0.1 in | Receptacle with Latch to Receptacle with Latch | 203.2 mm | 8 in | |||
TE Connectivity AMP Connectors A9CCA-2002E | 20 | 1.27 mm | 0.05 in | Receptacle with Latch to Receptacle with Latch | |||||
TE Connectivity AMP Connectors A9CCA-0305F | 2.54 mm | 0.1 in | Receptacle with Latch to Receptacle with Latch | 5 in | 127 mm | ||||
TE Connectivity AMP Connectors A9CCA-1002E | 10 | 1.27 mm | 0.05 in | Receptacle with Latch to Receptacle with Latch | |||||
TE Connectivity AMP Connectors A9CCA-1302F | 13 | 2.54 mm | 0.1 in | Receptacle with Latch to Receptacle with Latch | |||||
TE Connectivity AMP Connectors A9CCA-1804F | 18 | 2.54 mm | 0.1 in | Receptacle with Latch to Receptacle with Latch | 4 " | 101.6 mm | |||
TE Connectivity AMP Connectors A9CCA-2006E | 20 | 1.27 mm | 0.05 in | Receptacle with Latch to Receptacle with Latch | 152.4 mm | 6 in | |||
TE Connectivity AMP Connectors A9CCA-0403E | 4 | 1.27 mm | 0.05 in | Receptacle with Latch to Receptacle with Latch | 3 in | 76.2 mm | |||
TE Connectivity AMP Connectors A9CCA-0405F | 4 | 2.54 mm | 0.1 in | Receptacle with Latch to Receptacle with Latch | 5 in | 127 mm |
Description
General part information
A9CCA Series

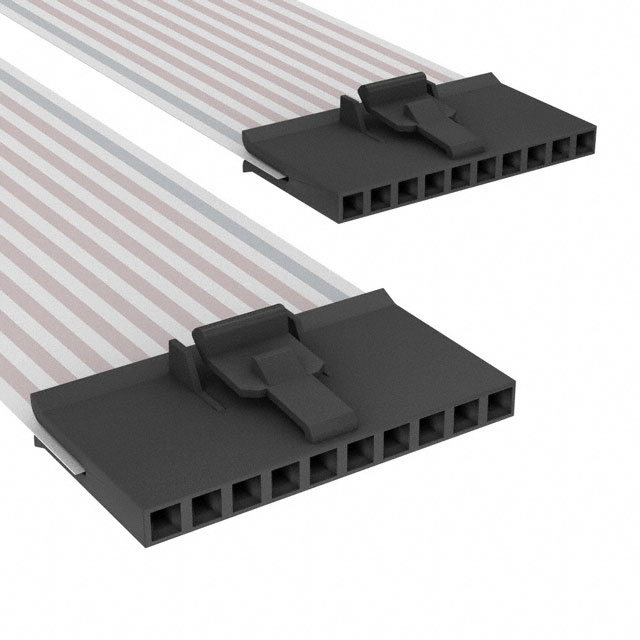

10 Position Flat Flex Cable Assembly Receptacle with Latch to Receptacle with Latch 2.00" (50.80mm)
