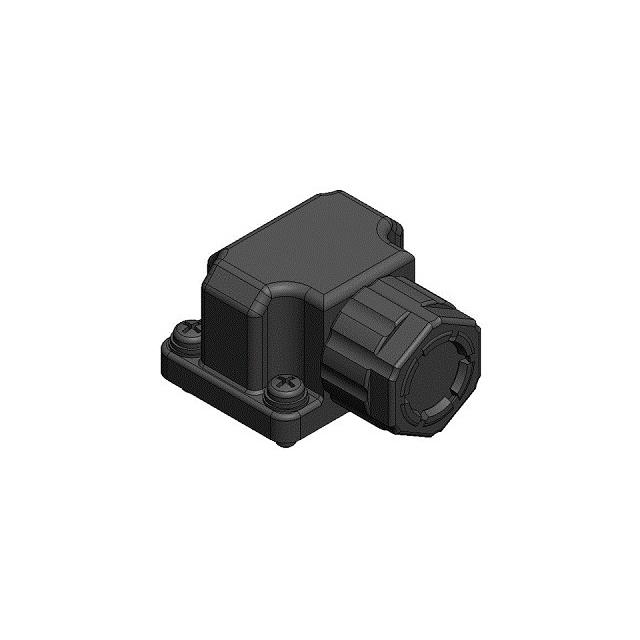

JN14FH04SJ1
ActiveJAE Electronics
COMPACT WATERPROOF CONNECTOR 4 P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JN14FH04SJ1
ActiveJAE Electronics
COMPACT WATERPROOF CONNECTOR 4 P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN14FH04SJ1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | Waterproof (Mated, IP67) |
| Insulation Material | Synthetic Resin |
| Mounting Type | Screw Mount |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.33 | |
| 10 | $ 15.88 | |||
| 25 | $ 15.05 | |||
| 50 | $ 14.83 | |||
| 100 | $ 13.09 | |||
| 250 | $ 12.22 | |||
| 500 | $ 11.96 | |||
Description
General part information
JN14FH Series
4 Rectangular Connectors - Housings Plug Black
