BIDW50N65T

Active

Bourns Inc.

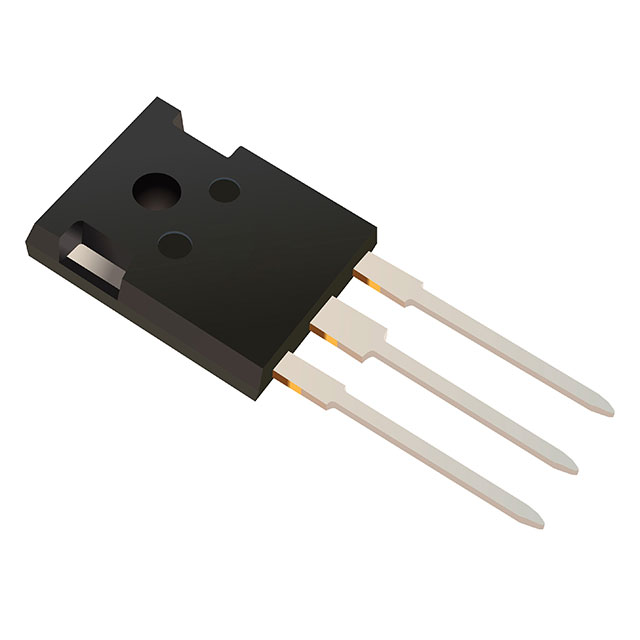

IGBT TRENCH FS 650V 100A TO247

Search across all available documentation for this part.

Active

Bourns Inc.

IGBT TRENCH FS 650V 100A TO247

Technical Specifications

Parameters and characteristics for this part

Specification	BIDW50N65T

Current - Collector (Ic) (Max) [Max]	100 A
Current - Collector Pulsed (Icm)	150 A
Gate Charge	123 nC
IGBT Type	Trench Field Stop
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	TO-247-3
Power - Max [Max]	416 W
Reverse Recovery Time (trr)	37.5 ns
Supplier Device Package	TO-247
Switching Energy	1.1 mJ, 3 mJ
Td (on/off) @ 25°C	125 ns, 37 ns
Test Condition [custom]	400 V, 15 V
Test Condition [custom]	10 Ohm
Test Condition [custom]	50 A
Vce(on) (Max) @ Vge, Ic	2.2 V
Voltage - Collector Emitter Breakdown (Max)	650 V

Part	Package / Case	Switching Energy	Gate Charge	IGBT Type	Vce(on) (Max) @ Vge, Ic	Test Condition [custom]	Test Condition [custom]	Test Condition [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Voltage - Collector Emitter Breakdown (Max)	Td (on/off) @ 25°C	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Mounting Type	Current - Collector Pulsed (Icm)	Reverse Recovery Time (trr)
Bourns Inc. BIDW50N65T	TO-247-3	1.1 mJ 3 mJ	123 nC	Trench Field Stop	2.2 V	15 V 400 V	10 Ohm	50 A	-55 °C	150 °C	TO-247	650 V	37 ns 125 ns	100 A	416 W	Through Hole	150 A	37.5 ns
