MG7050HAN 100.000000M-2ACJAA0

Active

EPSON

MG7050HAN 100.000000M-2ACJAA0: M

Search across all available documentation for this part.

Active

EPSON

MG7050HAN 100.000000M-2ACJAA0: M

Technical Specifications

Parameters and characteristics for this part

Specification	MG7050HAN 100.000000M-2ACJAA0

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	25 mA
Current - Supply (Max) [Max]	90 mA
Frequency - Output 1	100 MHz
Frequency - Output 2	100 MHz
Frequency Stability	50 ppm
Function	Enable/Disable
Height [z]	1.62 mm
Height [z]	0.064 in
Output	HCSL

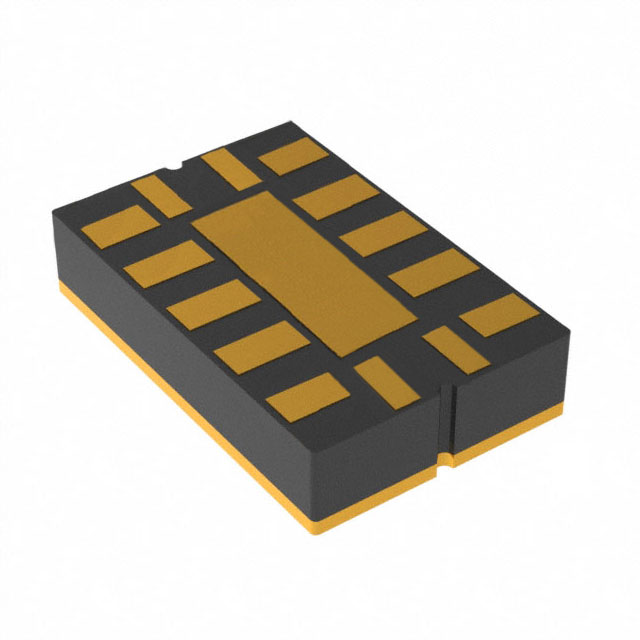

Package / Case	14-SMD, No Lead
Size / Dimension [x]	7 mm
Size / Dimension [x]	0.276 "
Size / Dimension [y]	5 mm
Size / Dimension [y]	0.197 "
Type	SO (SAW)
Voltage - Supply	3.3 V

MG7050HAN 100.000000M-2ACJAA0: M

Part	Package / Case	Type	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Supply	Frequency - Output 2	Current - Supply (Disable) (Max) [Max]	Frequency Stability	Output	Current - Supply (Max) [Max]	Frequency - Output 1	Function	Base Resonator
EPSON MG7050HAN 100.000000M-2ACJAA0	14-SMD, No Lead	SO (SAW)	1.62 mm	0.064 in	7 mm	5 mm	0.276 "	0.197 "	3.3 V	100 MHz	25 mA	50 ppm	HCSL	90 mA	100 MHz	Enable/Disable	Crystal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 8.08

General part information

HCSL SO (SAW) Pin Configurable Oscillator 3.3V 14-SMD, No Lead
