926657-5
ActiveTE Connectivity AMP Connectors

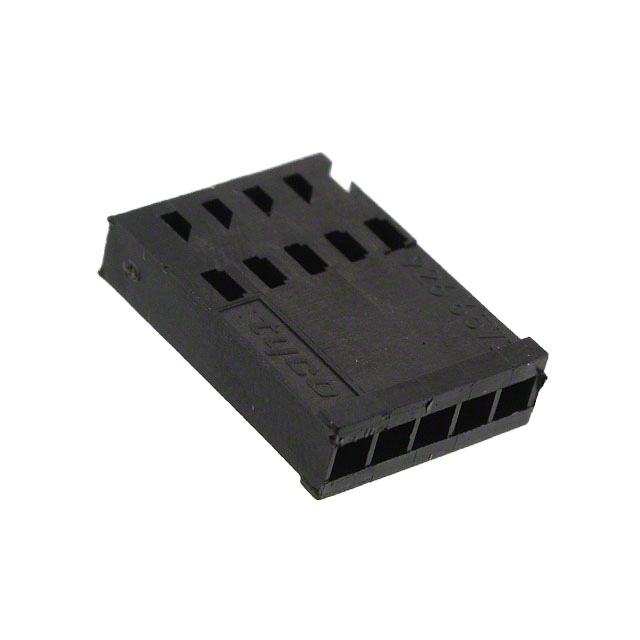

CONN RCPT HSG 5POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
926657-5
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 5POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 926657-5 | 926657 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Features | - | Stackable |
| Insulation Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT), Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | - | 2 - 15 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
926657 Series
CONN RCPT HSG 6POS 2.54MM
| Part | Number of Positions | Contact Termination | Color | Insulation Material | Contact Type | Connector Type | Note | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch [x] | Pitch [x] | Number of Rows | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 926657-6 | 6 | Crimp | Black | Polybutylene Terephthalate (PBT) | Female Socket | Receptacle | Contacts Not Included | Free Hanging (In-Line) | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 1 | |
TE Connectivity AMP Connectors 1-926657-5 | 15 | Crimp | Black | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | Receptacle | Contacts Not Included | Free Hanging (In-Line) | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 1 | |
TE Connectivity AMP Connectors 5-926657-2 | 2 | Crimp | Black | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | Receptacle | Contacts Not Included | Free Hanging (In-Line) | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 1 | Stackable |
TE Connectivity AMP Connectors 926657-2 | 2 | Crimp | Black | Polybutylene Terephthalate (PBT) | Female Socket | Receptacle | Contacts Not Included | Free Hanging (In-Line) | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 1 | |
TE Connectivity AMP Connectors 1-926657-0 | 10 | Crimp | Black | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | Receptacle | Contacts Not Included | Free Hanging (In-Line) | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 1 | |
TE Connectivity AMP Connectors 926657-5 | Crimp | Black | Polybutylene Terephthalate (PBT) | Female Socket | Receptacle | Contacts Not Included | Free Hanging (In-Line) | -65 ░C | 105 ░C | 2.54 mm | 0.1 in | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.54 | |
| 10 | $ 1.41 | |||
| 25 | $ 1.37 | |||
| 50 | $ 1.35 | |||
| 100 | $ 1.26 | |||
| 250 | $ 1.24 | |||
| 500 | $ 1.12 | |||
| 1000 | $ 1.01 | |||
| 3000 | $ 0.93 | |||
Description
General part information
926657 Series
5 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
