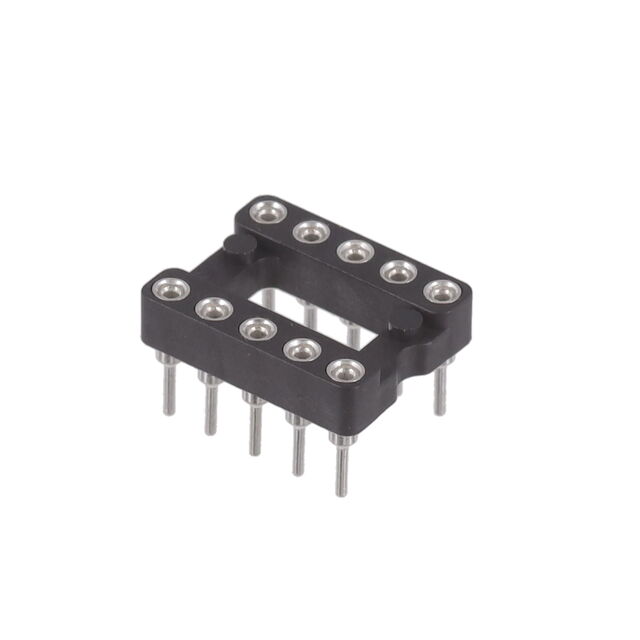

110-44-310-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC SKT DBL

Deep-Dive with AI

Search across all available documentation for this part.

110-44-310-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC SKT DBL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	110-44-310-41-001000

Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Contact Resistance	10 mOhm
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	2 x 5
Number of Positions or Pins (Grid) [custom]	10
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

110-44 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type	Type	Type	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Material - Post	Number of Positions or Pins (Grid)	Contact Material - Mating	Contact Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Post	Pitch - Post	Housing Material	Material Flammability Rating	Termination	Termination Post Length	Termination Post Length	Features	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 110-44-420-61-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.4 in	10.16 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy	20	Beryllium Copper	10 mOhm	-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 110-44-310-41-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy		Beryllium Copper	10 mOhm	-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	3.18 mm	0.125 in	Open Frame	2 x 5	10
Mill-Max Manufacturing Corp. 110-44-964-61-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.9 in	22.86 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy	64	Beryllium Copper	10 mOhm	-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 110-44-308-41-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy	8	Beryllium Copper		-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Solder	3.18 mm	0.125 in	Open Frame
Mill-Max Manufacturing Corp. 110-44-320-41-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy	20	Beryllium Copper		-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Solder	3.18 mm	0.125 in	Open Frame
Mill-Max Manufacturing Corp. 110-44-424-61-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.4 in	10.16 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy	24	Beryllium Copper	10 mOhm	-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	3.18 mm	0.125 in
Mill-Max Manufacturing Corp. 110-44-424-41-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.4 in	10.16 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy	24	Beryllium Copper		-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester		Solder	3.18 mm	0.125 in	Open Frame
Mill-Max Manufacturing Corp. 110-44-650-61-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy		Beryllium Copper	10 mOhm	-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	3.18 mm	0.125 in				25	2	50
Mill-Max Manufacturing Corp. 110-44-428-41-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.4 in	10.16 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy	28	Beryllium Copper	10 mOhm	-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	3.18 mm	0.125 in	Open Frame
Mill-Max Manufacturing Corp. 110-44-628-61-001000	2.54 çm	100 çin	3 A	Tin	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Through Hole	0.1 in	2.54 mm	Brass Alloy	28	Beryllium Copper	10 mOhm	-55 °C	125 °C	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	UL94 V-0	Solder	3.18 mm	0.125 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 14.48
		10	$ 12.83
		40	$ 11.85
		80	$ 11.19
		280	$ 10.20
		520	$ 9.54
		1000	$ 8.75

Description

General part information

110-44 Series

10 (2 x 5) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Tin Through Hole

Documents

Technical documentation and resources

No documents available
