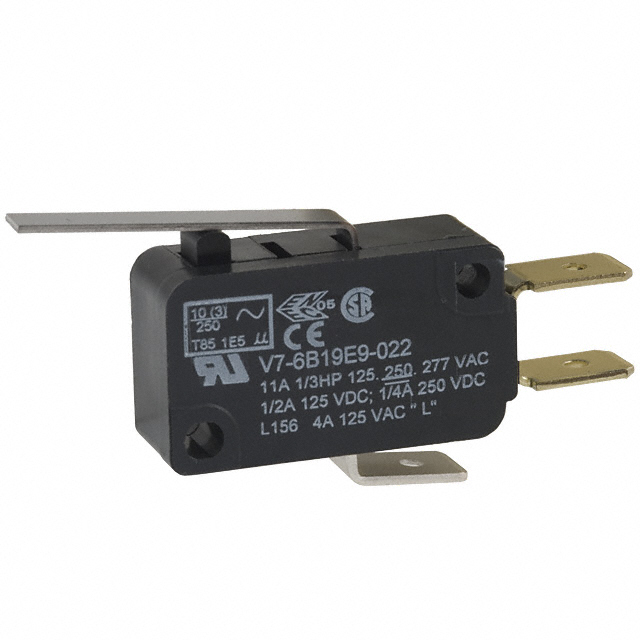

V7-6B19E9-022

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 11A 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 11A 125V

Part	Operating Force	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Operating Position	Operating Position	Pretravel	Pretravel	Switch Function	Voltage Rating - AC	Mechanical Life	Current Rating (Amps)	Overtravel	Overtravel	Release Force	Voltage Rating - DC	Circuit	Actuator Type	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions V7-6B19E9-022	215 gf	Quick Connect - 0.250" (6.3mm)	Chassis Mount	85 °C	-40 °C	100000 Cycles	0.6 in	15.2 mm	0.128 in	3.25 mm	On-Mom	125 V	10000000 Cycles	11 A, 500 mA	1.35 mm	0.053 in	38 gf	125 VDC	SPDT	Lever, Straight	0.03 in	0.76 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switch SPDT Chassis Mount
