E921KALN

Active

Switchcraft Inc.

PEND CBL,ALT ACT BL LED, ROHS

Search across all available documentation for this part.

Active

Switchcraft Inc.

PEND CBL,ALT ACT BL LED, ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	E921KALN

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Natural
Current Rating (Amps)	250 mA
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Blue
Illumination Voltage (Nominal) [Max]	28 VDC
Illumination Voltage (Nominal) [Min]	4.75 VDC
Ingress Protection	IP66
Mechanical Life	100000 Cycles
Mounting Type	Free Hanging
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Switch Function	Off-On
Termination Style	Cable Leads
Type	Illuminated, Standard
Voltage Rating - DC	28 V

PEND CBL,ALT ACT BL LED, ROHS

Part	Mechanical Life	Illumination Type, Color	Circuit	Electrical Life	Current Rating (Amps)	Termination Style	Color - Actuator/Cap	Mounting Type	Type	Switch Function	Ingress Protection	Actuator Type	Illumination Voltage (Nominal) [Max]	Illumination Voltage (Nominal) [Min]	Actuator Marking	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]
Switchcraft Inc. E921KALN	100000 Cycles	Blue, LED	SPST-NO	100000 Cycles	250 mA	Cable Leads	Natural	Free Hanging	Illuminated, Standard	Off-On	IP66	Button, Round	28 VDC	4.75 VDC	No Marking	28 V	-25 °C	75 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

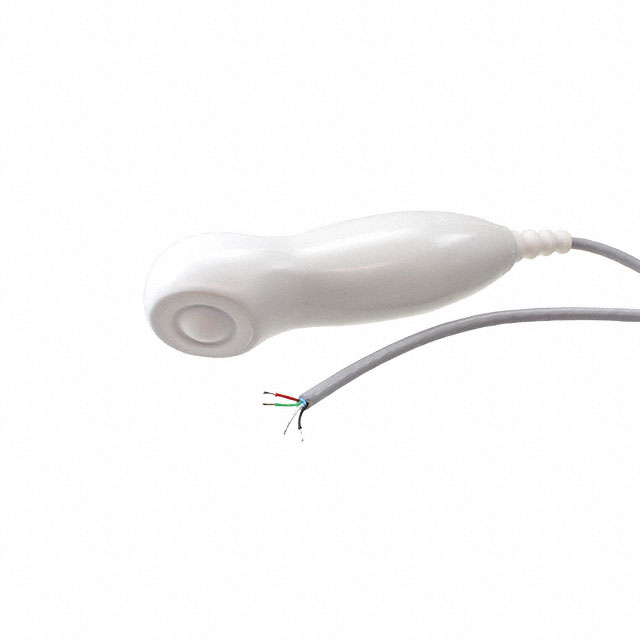

Pushbutton Switch SPST-NO Standard, Illuminated Free Hanging
