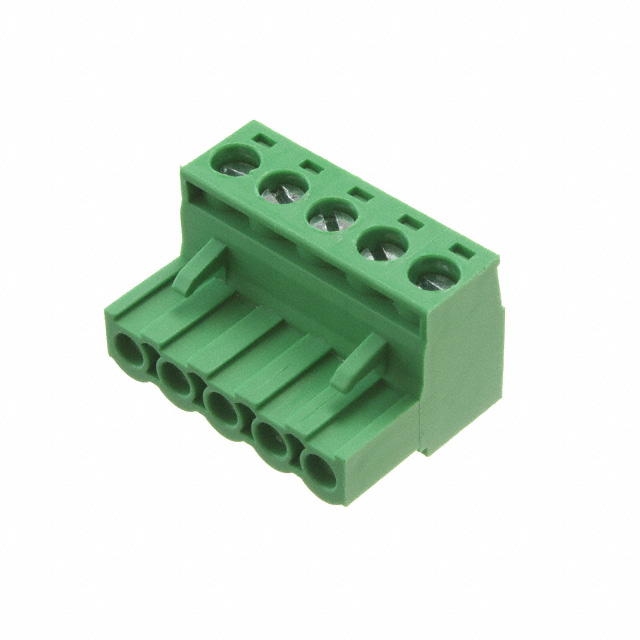

EBHA-05-C

Active

Adam Tech

EURO BLOCK 5P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 5P

Technical Specifications

Parameters and characteristics for this part

Specification	EBHA-05-C

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Nickel
Insulation Height	0.594 in
Insulation Height	15.09 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	5
Screw Size	M3
Termination Style	Screw - Leaf Spring, Wire Guard
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	14 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length [Max]	8 mm
Wire Strip Length [Min]	7 mm

Part	Insulation Height	Insulation Height	Torque - Screw	Torque - Screw	Color	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Type	Contact Mating Finish	Mounting Type	Material Flammability Rating	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm˛	Number of Levels	Wire Strip Length [Min]	Wire Strip Length [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Voltage - UL	Screw Size	Contact Material	Positions Per Level
Adam Tech EBHA-02-D	0.594 in	15.09 mm	4.4 Lb-In	0.5 Nm	Green	Screw - Leaf Spring Wire Guard	-40 °C	105 ░C	2	Plug Female Sockets	Nickel	Free Hanging (In-Line)	UL94 V-0	0.2 in	5.08 mm	2.5 mm˛	1	7 mm	8 mm	14 AWG	28 AWG	300 V	M3	Phosphor Bronze	2
Adam Tech EBHA-05-C	0.594 in	15.09 mm	4.4 Lb-In	0.5 Nm	Green	Screw - Leaf Spring Wire Guard	-40 °C	105 ░C		Plug Female Sockets	Nickel	Free Hanging (In-Line)	UL94 V-0	0.197 in	5 mm	2.5 mm˛	1	7 mm	8 mm	14 AWG	28 AWG	300 V	M3	Phosphor Bronze	5
Adam Tech EBHA-05-D	0.594 in	15.09 mm	4.4 Lb-In	0.5 Nm	Green	Screw - Leaf Spring Wire Guard	-40 °C	105 ░C		Plug Female Sockets	Nickel	Free Hanging (In-Line)	UL94 V-0	0.2 in	5.08 mm	2.5 mm˛	1	7 mm	8 mm	14 AWG	28 AWG	300 V	M3	Phosphor Bronze	5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
