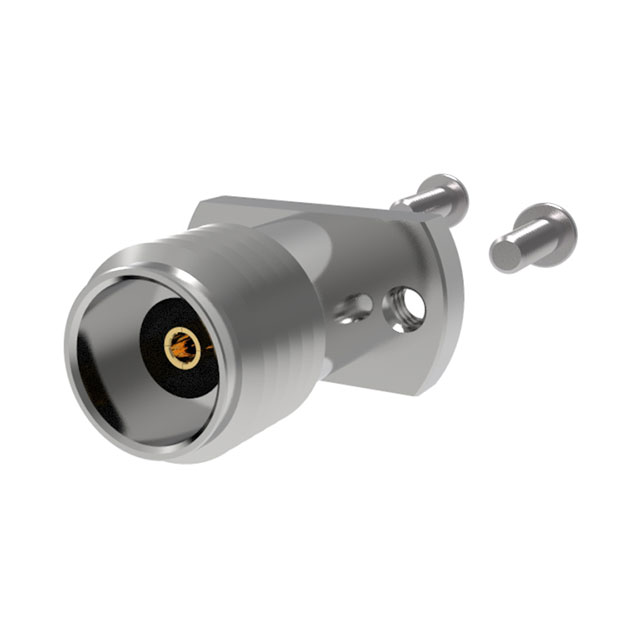

TMB-V9F2-3L1

Active

CarlisleIT

2.92(F)2-H,VL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

2.92(F)2-H,VL,FIELDREP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TMB-V9F2-3L1	TMB-V9 Series

Body Finish	-	Gold
Body Material	Stainless Steel	Brass, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	2.92 mm	2.92 mm
Connector Type	Female Socket, Jack	Female Socket, Jack
Contact Termination	Compression	Solder, Compression
Features	Field Replaceable, For Hermetically Sealed Pin	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	40 GHz	40 GHz
Housing Color	Silver	Gold, Silver
Impedance	50 Ohms	50 Ohms
Insertion Loss	0.38 dB	0.38 - 0.6 dB
Mating Cycles	500	500
Mounting Feature	Flange	Flange
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Ports	1	1
Operating Temperature [Max]	85 °C	85 - 165 °C
Operating Temperature [Min]	-55 °C	-65 - -55 ░C
Shield Termination	Screw	Solder, Screw
Voltage Rating	500 V	400 - 500 V

2.92(F)STR,VL,MIXED-TECH,SOLDER

Part	Center Contact Material	Shield Termination	Connector Style	Mating Cycles	Connector Type	Voltage Rating	Housing Color	Contact Termination	Number of Ports	Frequency - Max [Max]	Body Material	Mounting Type	Insertion Loss	Body Finish	Center Contact Plating	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Features	Mounting Feature
CarlisleIT TMB-V9FS-3SM	Beryllium Copper	Solder	2.92 mm	500	Female Socket, Jack	400 V	Gold	Solder	1	40 GHz	Brass	Through Hole	0.6 dB	Gold	Gold	50 Ohms	-65 ░C	165 °C
CarlisleIT TMB-V9F2-3L1	Beryllium Copper	Screw	2.92 mm	500	Female Socket, Jack	500 V	Silver	Compression	1	40 GHz	Stainless Steel	Surface Mount	0.38 dB		Gold	50 Ohms	-55 °C	85 °C	Field Replaceable, For Hermetically Sealed Pin	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.92mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
