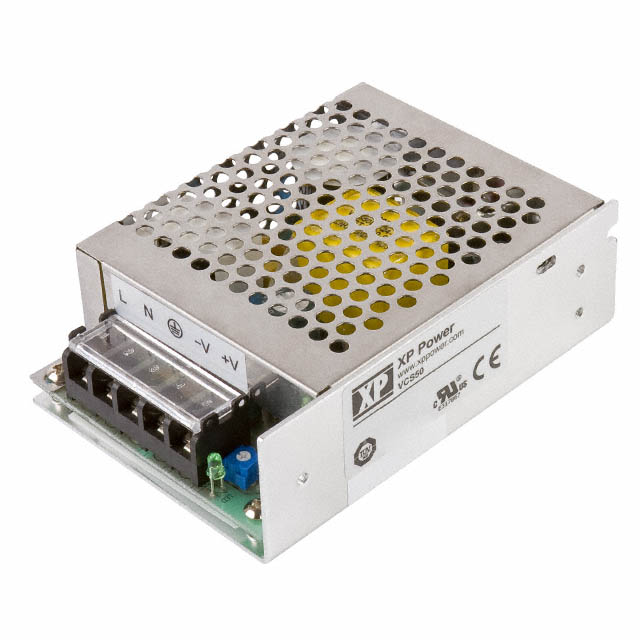

VCS50US15

Active

XP Power

PSU, LOW COST, CASED, 50W 15V 3.3A

Search across all available documentation for this part.

Active

XP Power

PSU, LOW COST, CASED, 50W 15V 3.3A

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	VCS50US15	VCS50 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CB	CB
Current - Output 1	3.3 A	1.05 - 8 A
Efficiency	86 %	79 - 88 %
Features	Universal Input, Adjustable Output, DC Input Capable	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Power (Watts)	50 W	50 W
Size / Dimension [x]	110.5 mm	110.5 mm
Size / Dimension [x]	4.35 "	4.35 "
Size / Dimension [y]	78 mm	78 mm
Size / Dimension [y]	3.07 in	3.07 in
Size / Dimension [z]	35 mm	35 mm
Size / Dimension [z]	1.38 in	1.38 in
Standard Number	62368-1	62368-1
Type	Enclosed	Enclosed
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	15 V	5 - 48 V

AC/DC CONVERTER 24V 50W

Part	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Type	Standard Number	Number of Outputs	Features	Mounting Type	Applications	Efficiency	Current - Output 1	Voltage - Output 1	Approval Agency
XP Power VCS50US24	50 W	78 mm	110.5 mm	35 mm	3.07 in	4.35 "	1.38 in	3000 V	-25 °C	70 °C	Enclosed	62368-1	1	Adjustable Output, DC Input Capable, Universal Input	Chassis Mount	ITE (Commercial)	88 %	2.1 A	24 V	CB
XP Power VCS50US48	50 W	78 mm	110.5 mm	35 mm	3.07 in	4.35 "	1.38 in	3000 V	-25 °C	70 °C	Enclosed	62368-1	1	Adjustable Output, DC Input Capable, Universal Input	Chassis Mount	ITE (Commercial)	88 %	1.05 A	48 V	CB
XP Power VCS50US05	50 W	78 mm	110.5 mm	35 mm	3.07 in	4.35 "	1.38 in	3000 V	-25 °C	70 °C	Enclosed	62368-1	1	Adjustable Output, DC Input Capable, Universal Input	Chassis Mount	ITE (Commercial)	79 %	8 A	5 V	CB
XP Power VCS50US15	50 W	78 mm	110.5 mm	35 mm	3.07 in	4.35 "	1.38 in	3000 V	-25 °C	70 °C	Enclosed	62368-1	1	Adjustable Output, DC Input Capable, Universal Input	Chassis Mount	ITE (Commercial)	86 %	3.3 A	15 V	CB
