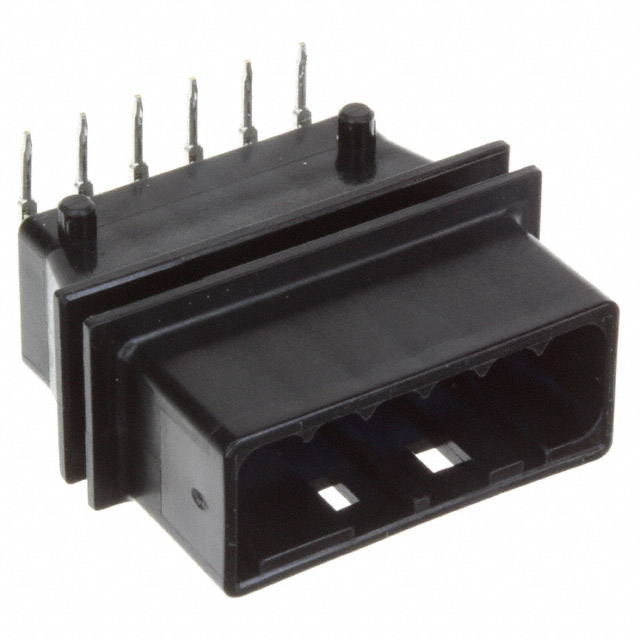

MX44006NF1

Active

JAE Electronics

CONN HEADER BRD EDGE 6POS 3.5MM

Search across all available documentation for this part.

Active

JAE Electronics

CONN HEADER BRD EDGE 6POS 3.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	MX44006NF1

Applications	Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.122 "
Contact Length - Post	3.1 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	Waterproof
Insulation Color	Black
Insulation Height	0.465 in
Insulation Height	11.8 mm
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.138 in
Pitch - Mating	3.5 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

Part	Mounting Type	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Shape	Contact Material	Fastening Type	Features	Connector Type	Number of Positions	Number of Rows	Number of Positions Loaded	Contact Type	Insulation Material	Ingress Protection	Style	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Applications	Termination	Insulation Color
JAE Electronics MX44006NF1	Board Edge Right Angle Through Hole	Shrouded - 4 Wall	125 °C	-40 °C	0.465 in	11.8 mm	3 A	Square	Brass	Latch Holder	Board Guide	Header	6	1	All	Male Pin	Polybutylene Terephthalate (PBT) Glass Filled	Waterproof	Board to Cable/Wire	Tin	0.122 "	3.1 mm	0.138 in	3.5 mm	Automotive	Solder	Black
