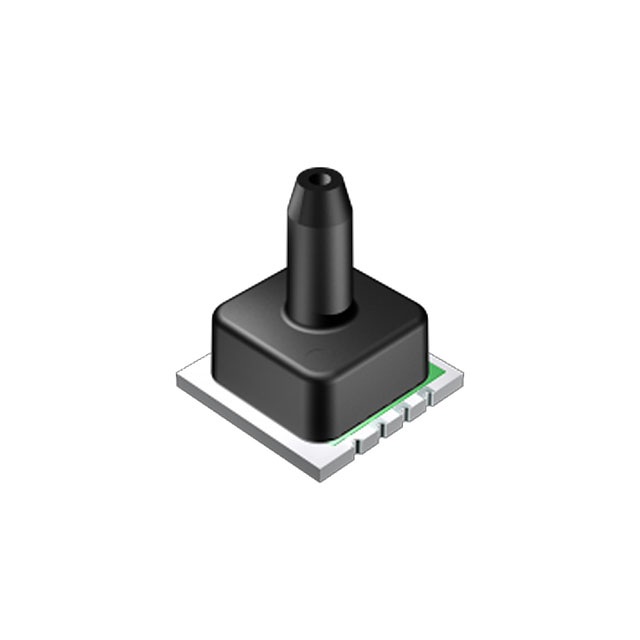

CSM-015A-LP

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.09" .066V 8CSMD

Search across all available documentation for this part.

Active

Amphenol All Sensors Corporation

SENSOR 15PSIA 0.09" .066V 8CSMD

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR 15PSIA 0.09" .066V 8CSMD

Part	Accuracy	Operating Pressure [custom]	Operating Pressure [custom]	Voltage - Supply	Package / Case	Maximum Pressure [Max]	Maximum Pressure [Max]	Mounting Type	Output [Max]	Output [Min]	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Port Style	Port Size	Port Size	Port Size	Termination Style	Features	Output Type	Supplier Device Package
Amphenol All Sensors Corporation CSM-015A-LP	0.5 %	15 PSI	103.42 kPa	6 V	8-CSMD	30 PSI	206.84 kPa	Surface Mount	66 mV	0 mV	Board Mount	-25 °C	85 °C	Barbless	2.29 mm	Male, Tube	0.09 "	SMD (SMT) Tab	Temperature Compensated	Wheatstone Bridge	8-CSMD
Amphenol All Sensors Corporation CSM-015A-LF	0.5 %	15 PSI	103.42 kPa	6 V	8-CSMD, No Lead	30 PSI	206.84 kPa	Surface Mount	66 mV	0 mV	Board Mount	-25 °C	85 °C	No Port				SMD (SMT) Tab	Temperature Compensated	Wheatstone Bridge	8-CSMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 15.02

General part information

Pressure Sensor 15PSI (103.42kPa) Absolute Male - 0.09" (2.29mm) Tube 0 mV ~ 66 mV (3V) 8-CSMD, No Lead, Top Port
