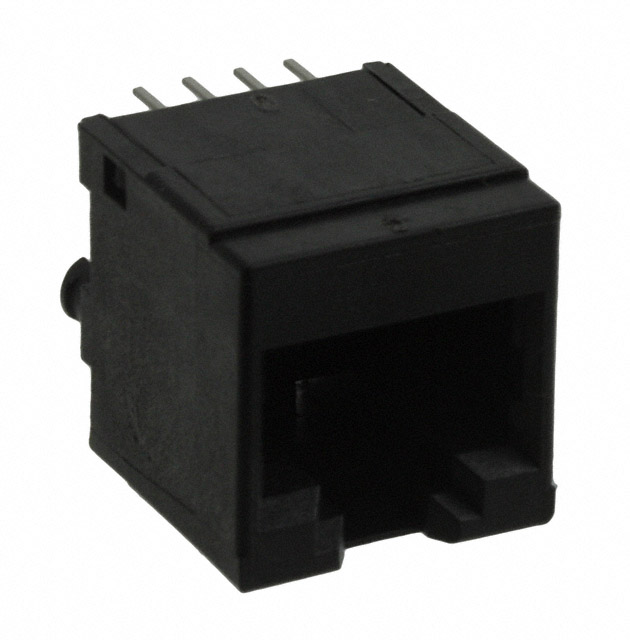

SS71800-022F

Active

STEWART CONNECTOR

CONN MOD JACK 8P8C VERT UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

SS71800-022F

Active

STEWART CONNECTOR

CONN MOD JACK 8P8C VERT UNSHLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.80
		10	$ 1.56
		25	$ 1.50
		40	$ 1.46
		80	$ 1.40
		230	$ 1.26
		455	$ 1.16
		1365	$ 1.00
		2730	$ 0.93

Description

General part information

SS71800 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) Vertical Unshielded Cat5e

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SS71800-022F	SS71800 Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 - 1.27 µm
Contact Finish Thickness	30 Áin	30 - 50 µin
Contact Material	Copper Alloy	Copper Alloy
Features	-	Board Lock, EPP918A, Board Guide
Housing Material	Thermoplastic	Thermoplastic, Thermoplastic, Glass Filled
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole, Panel Mount
Number of Ports	1	1 - 8
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet)
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Vertical	Vertical
Orientation	-	90 °
Ratings	Cat5e	Cat5e, Cat5
Shielding	Unshielded	Shielded, Shielded, EMI Finger, Unshielded
Tab Direction	User Selectable	Down, User Selectable
Termination	Solder	Solder

SS71800 Series

CONN MOD JACK 8P8C R/A SHIELDED

Part	Number of Positions/Contacts	Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Ratings	Number of Ports	Orientation	Shielding	Mounting Type	Tab Direction	Contact Material	Connector Type	Housing Material	Number of Rows	LED Color	Operating Temperature [Max]	Operating Temperature [Min]	Features	Orientation
STEWART CONNECTOR SS71800-011F	8p8c (RJ45, Ethernet)	Solder	Gold	50 µin	1.27 µm	Cat5e	1	90 °	Shielded	Through Hole	Down	Copper Alloy	Jack	Thermoplastic	1	Does Not Contain LED	85 °C	-40 °C
STEWART CONNECTOR SS71800-019G	8p8c (RJ45, Ethernet)	Solder	Gold	50 µin	1.27 µm	Cat5e	1	90 °	Shielded, EMI Finger	Through Hole	Down	Copper Alloy	Jack	Thermoplastic	1	Does Not Contain LED	85 °C	-40 °C	Board Lock, EPP918A
STEWART CONNECTOR SS71800-003G	8p8c (RJ45, Ethernet)	Solder	Gold	30 Áin	0.76 Ám	Cat5e	1	90 °	Unshielded	Through Hole	Down	Copper Alloy	Jack	Thermoplastic	1	Does Not Contain LED	85 °C	-40 °C	Board Lock, EPP918A
STEWART CONNECTOR SS71800-041F	8p8c (RJ45, Ethernet)	Solder	Gold	30 Áin	0.76 Ám	Cat5e	4	90 °	Shielded, EMI Finger	Through Hole	Down	Copper Alloy	Jack	Thermoplastic	1	Does Not Contain LED	85 °C	-40 °C	Board Guide
STEWART CONNECTOR SS71800-018F	8p8c (RJ45, Ethernet)	Solder	Gold	30 Áin	0.76 Ám	Cat5	1	90 °	Shielded, EMI Finger	Through Hole	Down	Copper Alloy	Jack	Thermoplastic	1	Does Not Contain LED	85 °C	-40 °C
STEWART CONNECTOR SS71800-016F			Gold									Copper Alloy	Jack	Thermoplastic, Glass Filled			85 °C	-40 °C
STEWART CONNECTOR SS71800-022F	8p8c (RJ45, Ethernet)	Solder	Gold	30 Áin	0.76 Ám	Cat5e	1		Unshielded	Through Hole	User Selectable	Copper Alloy	Jack	Thermoplastic	1	Does Not Contain LED	85 °C	-40 °C		Vertical
STEWART CONNECTOR SS71800-095F	8p8c (RJ45, Ethernet)	Solder	Gold	50 µin	1.27 µm	Cat5e	8	90 °	Shielded, EMI Finger	Panel Mount, Through Hole	Down	Copper Alloy	Jack	Thermoplastic	1	Does Not Contain LED			Board Guide
STEWART CONNECTOR SS71800-035F		Solder	Gold			Cat5e	2	90 °	Shielded	Through Hole	Down	Copper Alloy	Jack	Thermoplastic, Glass Filled	1	Does Not Contain LED	85 °C	-40 °C
STEWART CONNECTOR SS71800-019F	8p8c (RJ45, Ethernet)	Solder	Gold	50 µin	1.27 µm	Cat5	1	90 °	Shielded, EMI Finger	Through Hole	Down	Copper Alloy	Jack	Thermoplastic	1	Does Not Contain LED	85 °C	-40 °C
