89842 002500

Active

Belden Inc.

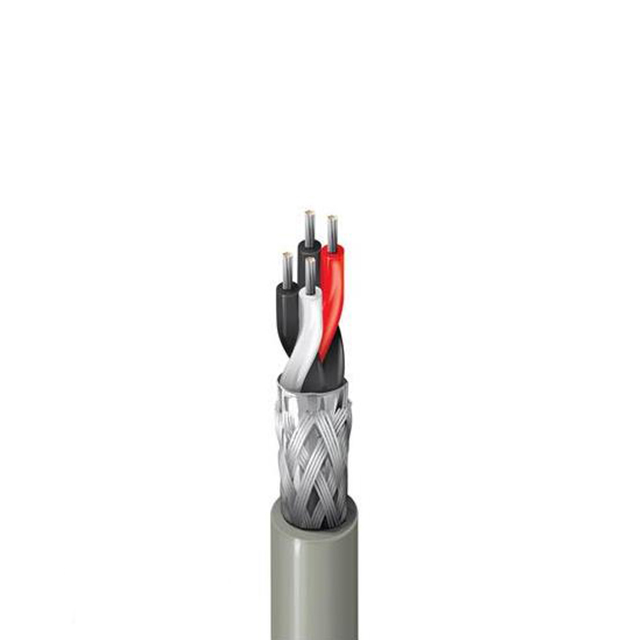

MULTI-PAIR 4COND 24AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 24AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	89842 002500

Cable Type	Multi-Pair
Conductor Insulation	Foam Fluorinated Ethylene-Propylene (FFEP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.305 in
Jacket (Insulation) Diameter [diameter]	7.75 mm
Jacket (Insulation) Material	Fluorinated Ethylene-Propylene (FEP), Plenum
Jacket (Insulation) Thickness	0.356 mm
Jacket (Insulation) Thickness	0.014 in
Jacket Color	Red
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	4
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-70 °C
Ratings	UL Style CMP
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Material	Jacket (Insulation) Material	Cable Type	Usage	Jacket Color	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Number of Conductors	Shield Type	Operating Temperature [Max]	Operating Temperature [Min]	Shield Coverage	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Features
Belden Inc. 89842 002500	Aluminum Copper Tinned	Fluorinated Ethylene-Propylene (FEP) Plenum	Multi-Pair	Computer	Red	24 AWG	500 '	152.4 m	0.305 in	7.75 mm	Foam Fluorinated Ethylene-Propylene (FFEP)	32 AWG	7	UL Style CMP	4	Braid Foil	150 °C	-70 °C	90 % 100 %	Copper Tinned	0.356 mm	0.014 in	300 V	Drain Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 11.72

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Red 24 AWG Foil, Braid 500.0' (152.4m)
