CES-116-01-G-S

Active

Samtec Inc.

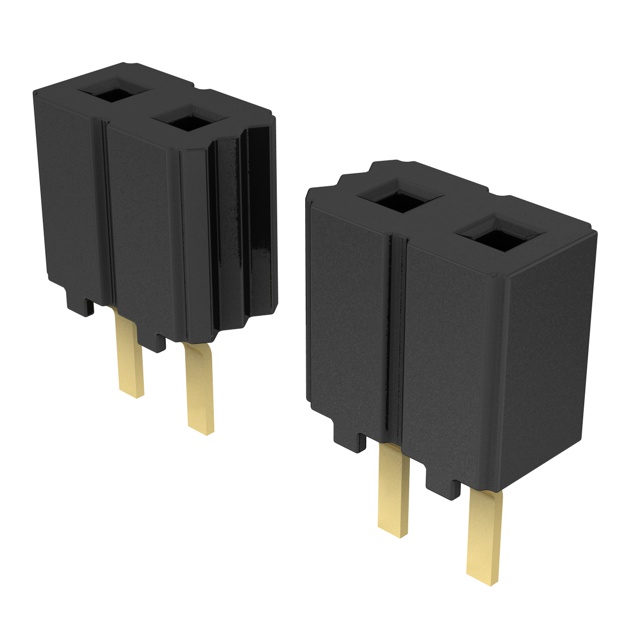

CONN RCPT 16POS 0.1 GOLD PCB

Search across all available documentation for this part.

Active

Samtec Inc.

CONN RCPT 16POS 0.1 GOLD PCB

Technical Specifications

Parameters and characteristics for this part

Specification	CES-116-01-G-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.51 µm
Contact Finish Thickness - Mating	20 µin
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Length - Post	0.128 "
Contact Length - Post	3.25 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

Part	Contact Type	Number of Rows	Contact Shape	Contact Finish - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Fastening Type	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Mounting Type	Contact Material	Insulation Material	Insulation Color	Contact Finish - Post	Connector Type	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Contact Length - Post
Samtec Inc. CES-116-02-L-S	Female Socket	1	Square	Gold	5.66 mm	0.223 in	10 çin	0.25 çm	All	0.1 in	2.54 mm	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Tin	Receptacle	16
Samtec Inc. CES-116-02-G-S	Female Socket	1	Square	Gold	5.66 mm	0.223 in	20 µin	0.51 µm	All	0.1 in	2.54 mm	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Gold	Receptacle	16	3 µin	0.076 µm
Samtec Inc. CES-116-01-T-S	Female Socket	1	Square						All	0.1 in	2.54 mm	Push-Pull	UL94 V-0	-55 °C	105 ░C	Solder	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Tin	Receptacle	16			0.128 "	3.25 mm
Samtec Inc. CES-116-01-G-S	Female Socket	1	Square	Gold			20 µin	0.51 µm	All	0.1 in	2.54 mm	Push-Pull	UL94 V-0	-55 °C	125 °C	Solder	Through Hole	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Black	Gold	Receptacle	16	3 µin	0.076 µm	0.128 "	3.25 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
