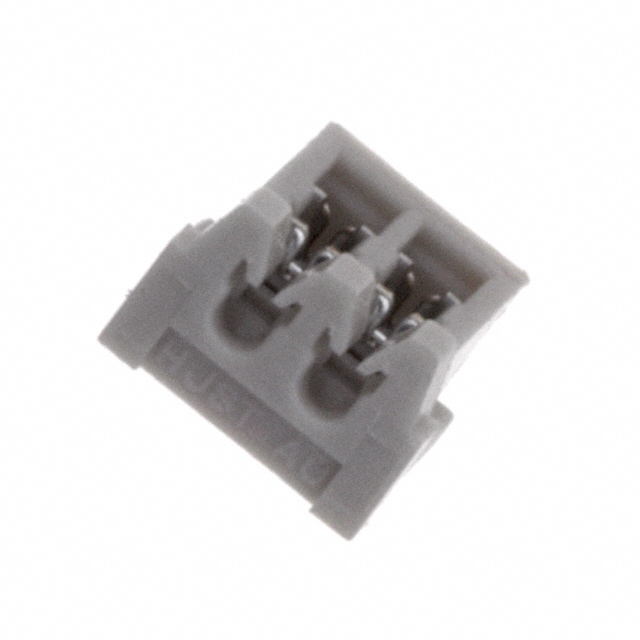

02ZR-3H-P

Active

JST Sales America Inc.

CONN RCPT 2POS IDC 30AWG TIN

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT 2POS IDC 30AWG TIN

Technical Specifications

Parameters and characteristics commom to parts in this series

CONN RCPT 2POS IDC 30AWG TIN

Part	Cable Termination	Contact Finish	Features	Number of Rows	Color	Pitch [x]	Pitch [x]	Connector Type	Wire Gauge	Mounting Type	Contact Type	Wire Type	Number of Positions
JST Sales America Inc. 02ZR-3H-P	IDC	Tin	Closed End	1	Natural	1.5 mm	0.059 in	Receptacle	30 AWG	Free Hanging (In-Line)	Female Socket	Discrete	2
JST Sales America Inc. 02ZR-8M-P	IDC	Tin	Closed End	1	Green	1.5 mm	0.059 in	Receptacle	28 AWG	Free Hanging (In-Line)	Female Socket	Discrete	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Rectangular Receptacle Connector IDC Tin 30 AWG
