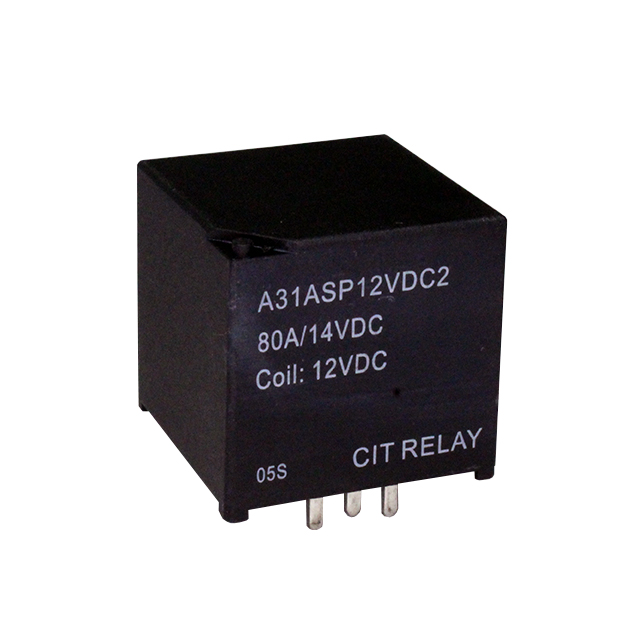

A31ASP12VDC2

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 80A 12V

Search across all available documentation for this part.

Active

CIT Relay and Switch

RELAY AUTOMOTIVE SPST 80A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A31ASP12VDC2	A31ASP Series

Coil Current	150 mA	75 - 150 mA
Coil Power	1.8 W	1.8 W
Coil Resistance	80 Ohms	80 - 320 Ohms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	12 - 24 VDC
Contact Form	SPST-NO (1 Form A)	SPST-NO (1 Form A)
Contact Material	Silver Tin Oxide Indium Oxide (AgSnOInO)	Silver Tin Oxide Indium Oxide (AgSnOInO)
Contact Rating (Current)	80 A	80 A
Features	Sealed - Fully	Sealed - Fully, Diode, Resistor
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	8.4 VDC	8.4 - 16.8 VDC
Must Release Voltage	1.2 VDC	1.2 - 2.4 VDC
Operate Time	7 ms	7 ms
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Release Time	5 ms	5 ms
Switching Voltage	75 VDC	75 VDC
Termination Style	PC Pin	PC Pin

RELAY AUTOMOTIVE SPST 80A 12V

Part	Release Time	Coil Current	Features	Operate Time	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Contact Form	Contact Material	Mounting Type	Coil Type	Coil Voltage	Coil Power	Must Operate Voltage	Contact Rating (Current)	Coil Resistance	Switching Voltage
CIT Relay and Switch A31ASP12VDC2	5 ms	150 mA	Sealed - Fully	7 ms	1.2 VDC	125 °C	-40 °C	PC Pin	SPST-NO (1 Form A)	Silver Tin Oxide Indium Oxide (AgSnOInO)	Through Hole	Non Latching	12 VDC	1.8 W	8.4 VDC	80 A	80 Ohms	75 VDC
CIT Relay and Switch A31ASP12VDC2D	5 ms	150 mA	Diode, Sealed - Fully	7 ms	1.2 VDC	125 °C	-40 °C	PC Pin	SPST-NO (1 Form A)	Silver Tin Oxide Indium Oxide (AgSnOInO)	Through Hole	Non Latching	12 VDC	1.8 W	8.4 VDC	80 A	80 Ohms	75 VDC
CIT Relay and Switch A31ASP24VDC2R	5 ms	75 mA	Resistor, Sealed - Fully	7 ms	2.4 VDC	125 °C	-40 °C	PC Pin	SPST-NO (1 Form A)	Silver Tin Oxide Indium Oxide (AgSnOInO)	Through Hole	Non Latching	24 VDC	1.8 W	16.8 VDC	80 A	320 Ohms	75 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST 80A 12V
