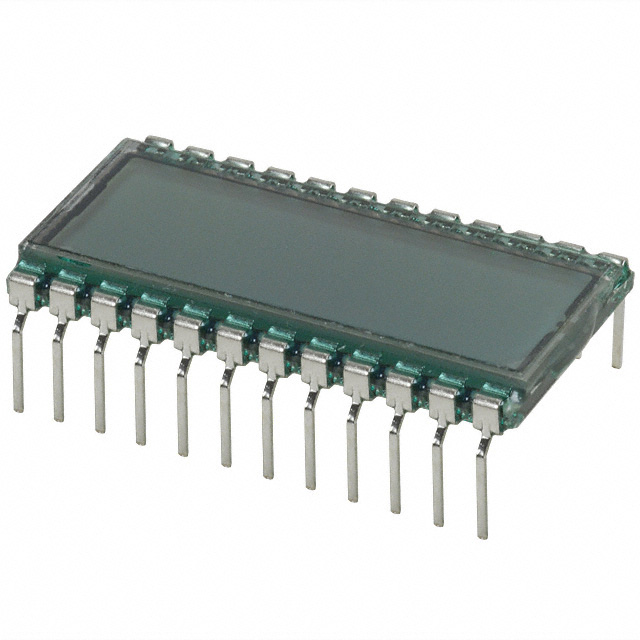

LCD-S301C31TF

Active

Lumex Opto/Components Inc.

LCD MOD 3DIG 3 X 1 TRANSFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 3DIG 3 X 1 TRANSFLECTIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

LCD MOD 3 DIG 3 X 1 REFLECTIVE

Part	Display Format [x]	Display Format [y]	Character Format	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Background Color	Display Mode	Viewing Area [y]	Viewing Area [x]	Backlight	Voltage - Supply	Display Type	Number of Characters [custom]	Character Size [z]	Character Size [y]
Lumex Opto/Components Inc. LCD-S301C31TR-3	3	1	7-Segment	16.2 mm	2.8 mm	30.7 mm	Gray	Reflective	10 mm	27.9 mm	Without Backlight	3 V	TN - Twisted Nematic	3
Lumex Opto/Components Inc. LCD-S301C31KR	3	1	7-Segment	16.2 mm	2.8 mm	30.7 mm	Gray	Reflective	10 mm	27.9 mm	Without Backlight	3 V	TN - Twisted Nematic	3
Lumex Opto/Components Inc. LCD-S301C31TF	3	1	7-Segment	16.2 mm	2.8 mm	30.7 mm	Gray	Transflective	10 mm	27.9 mm	Without Backlight	5 VAC	TN - Twisted Nematic	3	7.87 mm	5.08 mm
Lumex Opto/Components Inc. LCD-S301C31TR	3	1	7-Segment	16.2 mm	2.8 mm	30.7 mm	Gray	Reflective	10 mm	27.9 mm	Without Backlight		TN - Twisted Nematic	3	7.87 mm	5.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 7-Segment TN - Twisted Nematic Without Backlight 30.70mm x 16.20mm x 2.80mm

Technical documentation and resources

No documents available
