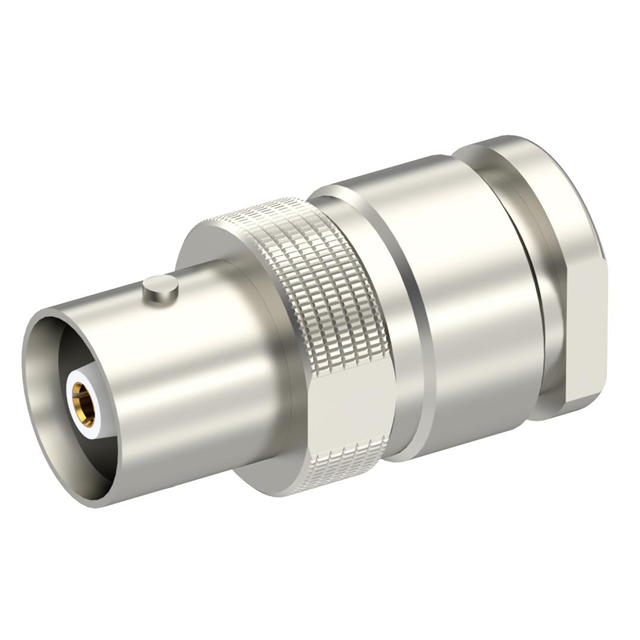

R166218000

Active

Radiall USA, Inc.

C / STRAIGHT JACK CLAMP TYPE CAB

Search across all available documentation for this part.

Active

Radiall USA, Inc.

C / STRAIGHT JACK CLAMP TYPE CAB

Technical Specifications

Parameters and characteristics for this part

Specification	R166218000

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-165, 225, 214, 213
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	C Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Clamp
Voltage Rating	1000 VDC

Part	Impedance	Cable Group	Dielectric Material	Body Finish	Contact Termination	Fastening Type	Mounting Type	Center Contact Material	Frequency - Max [Max]	Voltage Rating	Connector Style	Body Material	Number of Ports	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Connector Type	Center Contact Plating	Housing Color
Radiall USA, Inc. R166218000	50 Ohms	213 214 225 RG-165	Polytetrafluoroethylene (PTFE)	Nickel	Solder	Bayonet Lock	Free Hanging (In-Line)	Brass	11 GHz	1000 VDC	C Type	Brass	1	Clamp	155 °C	-55 °C	500	Female Socket Jack	Gold	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 178.96

General part information

C Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder

Technical documentation and resources

No documents available
