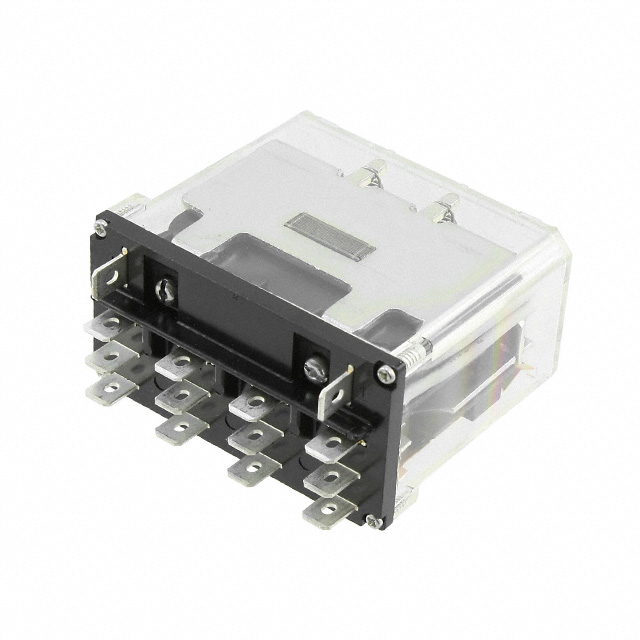

HG4-AC115V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 20A 115V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE 4PDT 20A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Switching Voltage	Coil Type	Release Time	Coil Resistance	Must Release Voltage	Approval Agency	Must Operate Voltage	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating (Current)	Contact Material	Termination Style	Relay Type	Mounting Type	Coil Voltage	Operate Time	Coil Current
Panasonic Electric Works HG4-AC6V	250 VAC	Non Latching	25 ms	4615 Ohms	1.8 VAC	CSA UR	4.8 VAC/DC	4PDT (4 Form C)	40 °C	-50 °C	20 A	Silver Alloy	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	Socketable	6 VAC	25 ms
Panasonic Electric Works HG4-AC12V	250 VAC	Non Latching	25 ms	19 Ohms	3.6 VAC	CSA UR	9.6 VAC/DC	4PDT (4 Form C)	40 °C	-50 °C	20 A	Silver Alloy	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	Socketable	12 VAC/DC	25 ms	632 mA
Panasonic Electric Works HG4-AC220V	250 VAC	Non Latching	25 ms	6471 Ohms	66 VAC	CSA UR	176 VAC	4PDT (4 Form C)	40 °C	-50 °C	20 A	Silver Alloy	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	Socketable	220 VAC/DC	25 ms	34 mA
Panasonic Electric Works HG4-AC240V-F	250 VAC	Non Latching		7595 Ohms	72 VAC/DC	CSA UR	192 VAC	4PDT (4 Form C)	40 °C	-50 °C	20 A	Silver Tin Oxide (AgSnO)	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	Socketable	240 VAC	40 ms	31.6 mA
Panasonic Electric Works HG4-AC115V-F	250 VAC	Non Latching		1.74 kOhms	34.5 VAC	CSA UR	92 VAC	4PDT (4 Form C)	40 °C	-50 °C	20 A	Silver Tin Oxide (AgSnO)	Plug In Quick Connect - 0.250" (6.3mm)	General Purpose	Socketable	115 VAC	40 ms	66.1 mA
