45112-010030-3749/12-D-6

Active

3M (TC)

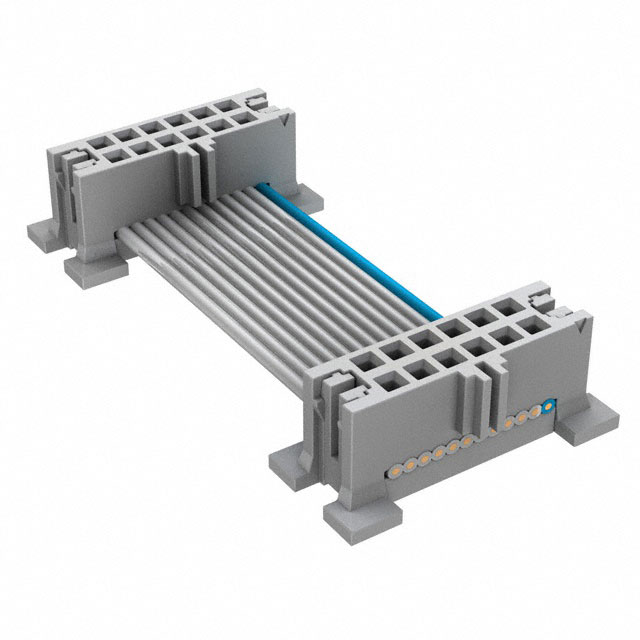

DBL END CBL ASY 12POS SKT 6"

Search across all available documentation for this part.

Active

3M (TC)

DBL END CBL ASY 12POS SKT 6"

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Wire Gauge	Wire Type	Mounting Type	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness	Connector Type	Cable Termination	Features	Row Spacing	Row Spacing	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Fastening Type	Shielding	Length	Length	Length	Pitch - Connector	Pitch - Connector	Pitch - Cable [x]	Pitch - Cable
3M (TC) 45112-010000	Gold	30 AWG	Ribbon Cable	Free Hanging (In-Line)	2	12	0.05 in	1.27 mm	Flash	Receptacle	IDC	Feed Through Polarizing Key	1.27 mm	0.05 in	Female Socket
3M (TC) 45112-000030	Gold	30 AWG	Ribbon Cable	Free Hanging (In-Line)	2	12	0.05 in	1.27 mm		Receptacle	IDC	Feed Through	1.27 mm	0.05 in	Female Socket	0.76 Ám	30 Áin
3M (TC) 45112-020000	Gold	30 AWG	Ribbon Cable	Free Hanging (In-Line)	2	12	0.05 in	1.27 mm	Flash	Receptacle	IDC	Feed Through Polarizing Key	1.27 mm	0.05 in	Female Socket			Friction Lock
3M (TC) 45112-010030-3749/12-D-6	Gold				2	12				Socket to Socket	IDC	Polarizing Key				0.76 Ám	30 Áin		Unshielded	152.4 mm	6 "	0.5 '	0.05 in	1.27 mm	0.025 in	0.64 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
