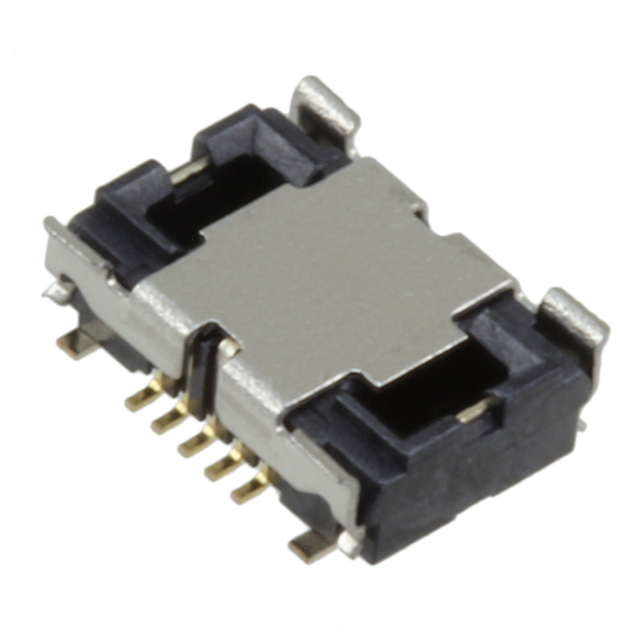

AXT310164

Obsolete

Panasonic Electric Works

CONN SOCKET 10POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

CONN SOCKET 10POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT310164

Connector Type	Socket, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.057 in
Height Above Board [z]	1.45 mm
Mated Stacking Heights	1.5 mm, 2 mm
Mounting Type	Surface Mount
Number of Positions	10
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Positions	Contact Finish	Connector Type	Features	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Number of Rows	Pitch [x]	Pitch [x]
Panasonic Electric Works AXT310124	10	Gold	Outer Shroud Contacts Socket	Solder Retention	Surface Mount	1.5 mm	0.057 in	1.45 mm	2	0.016 in	0.4 mm
Panasonic Electric Works AXT310114	10	Gold	Outer Shroud Contacts Socket	Board Guide Solder Retention	Surface Mount	1.5 mm	0.057 in	1.45 mm	2	0.016 in	0.4 mm
Panasonic Electric Works AXT310154	10	Gold	Outer Shroud Contacts Socket	Board Guide Solder Retention	Surface Mount	1.5 mm	0.057 in	1.45 mm	2	0.016 in	0.4 mm
Panasonic Electric Works AXT310164	10	Gold	Outer Shroud Contacts Socket	Solder Retention	Surface Mount	1.5 mm 2 mm	0.057 in	1.45 mm	2	0.016 in	0.4 mm
