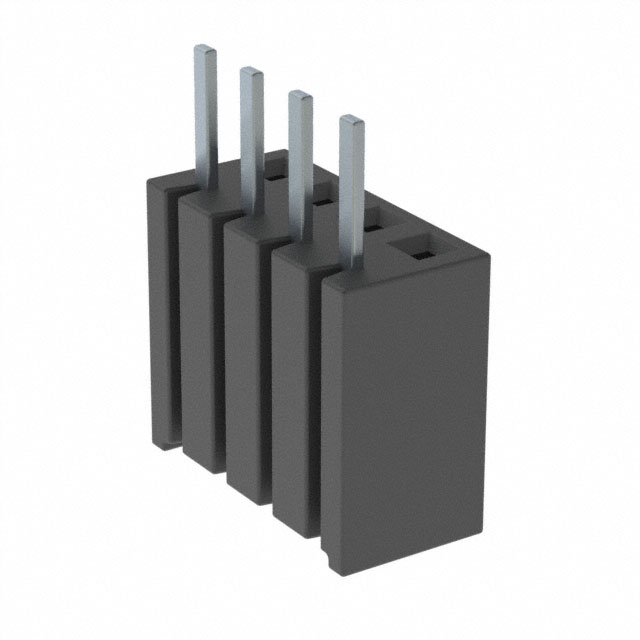

BSW-104-04-T-S

Active

Samtec Inc.

CONN RCPT 4POS 0.1 TIN PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet BSW Datasheet +1

BSW-104-04-T-S

Active

Samtec Inc.

CONN RCPT 4POS 0.1 TIN PCB

Deep-Dive with AI

DocumentsDatasheet BSW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-104-04-T-S

Connector Type	Breakaway, Receptacle
Contact Finish - Post	Tin
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

BSW-104 Series

Part	Contact Type	Contact Finish - Mating	Mounting Type	Insulation Material	Number of Positions Loaded	Material Flammability Rating	Insulation Color	Connector Type	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Insulation Height [custom]	Insulation Height [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Shape	Contact Length - Post	Contact Length - Post
Samtec Inc. BSW-104-24-G-D	Female Socket	Gold	Bottom Mount Through Hole	Polyethylene Terephthalate (PET) Glass Filled	All	UL94 V-0	Black	Breakaway Receptacle	Phosphor Bronze	0.165 in	4.19 mm	Tin	0.51 µm	20 µin	0.1 in	2.54 mm	Push-Pull	2	2.54 mm	0.1 in	8	0.35 in	8.89 mm	-55 °C	125 °C	Solder	Square
Samtec Inc. BSW-104-04-S-D	Female Socket	Gold	Bottom Mount Through Hole	Polyethylene Terephthalate (PET) Glass Filled	All	UL94 V-0	Black	Breakaway Receptacle	Phosphor Bronze	0.165 in	4.19 mm	Tin	0.76 Ám	30 Áin	0.1 in	2.54 mm	Push-Pull	2	2.54 mm	0.1 in	8	0.35 in	8.89 mm	-55 °C	125 °C	Solder	Square
Samtec Inc. BSW-104-24-L-D	Female Socket	Gold	Bottom Mount Through Hole	Polyethylene Terephthalate (PET) Glass Filled	All	UL94 V-0	Black	Breakaway Receptacle	Phosphor Bronze	0.165 in	4.19 mm	Tin	0.25 çm	10 çin	0.1 in	2.54 mm	Push-Pull	2	2.54 mm	0.1 in	8	0.35 in	8.89 mm	-55 °C	125 °C	Solder	Square
Samtec Inc. BSW-104-24-G-S	Female Socket	Gold	Bottom Mount Through Hole	Polyethylene Terephthalate (PET) Glass Filled	All	UL94 V-0	Black	Breakaway Receptacle	Phosphor Bronze			Tin	0.51 µm	20 µin	0.1 in	2.54 mm	Push-Pull	1			4	0.35 in	8.89 mm	-55 °C	125 °C	Solder	Square	4.32 mm	0.17 in
Samtec Inc. BSW-104-04-G-S	Female Socket	Gold	Bottom Mount Through Hole	Polyethylene Terephthalate (PET) Glass Filled	All	UL94 V-0	Black	Breakaway Receptacle	Phosphor Bronze			Tin	0.51 µm	20 µin	0.1 in	2.54 mm	Push-Pull	1			4	0.35 in	8.89 mm	-55 °C	125 °C	Solder	Square	4.32 mm	0.17 in
Samtec Inc. BSW-104-04-S-S	Female Socket	Gold	Bottom Mount Through Hole	Polyethylene Terephthalate (PET) Glass Filled	All	UL94 V-0	Black	Breakaway Receptacle	Phosphor Bronze			Tin	0.76 Ám	30 Áin	0.1 in	2.54 mm	Push-Pull	1			4	0.35 in	8.89 mm	-55 °C	125 °C	Solder	Square	4.32 mm	0.17 in
Samtec Inc. BSW-104-04-T-S	Female Socket		Bottom Mount Through Hole	Polyethylene Terephthalate (PET) Glass Filled	All	UL94 V-0	Black	Breakaway Receptacle	Phosphor Bronze			Tin			0.1 in	2.54 mm	Push-Pull	1			4	0.35 in	8.89 mm	-55 °C	105 ░C	Solder	Square	4.32 mm	0.17 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.83
		10	$ 0.63
		100	$ 0.48
		500	$ 0.40
		1000	$ 0.38
		5000	$ 0.32
		10000	$ 0.30

Description

General part information

BSW-104 Series

4 Position Receptacle, Breakaway Connector 0.100" (2.54mm) Through Hole, Bottom Mount Tin
