XA1110 DEV KIT_6001188

Obsolete

Sierra Wireless

XA1110 AIRPRIME DEV KIT

Search across all available documentation for this part.

Obsolete

Sierra Wireless

XA1110 AIRPRIME DEV KIT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XA1110 DEV KIT_6001188	XA1110 Series

Antenna Connector	-	Castellation
Antenna Type	-	Antenna Not Included
Applications	-	General Purpose
Current - Receiving	-	28 mA
Data Interface	-	SPI, UART
Data Rate	-	9.6 kbps
For Use With/Related Products	XA1110, MT3333	XA1110, MT3333
Frequency	-	1.598 - 1575 GHz
Frequency	-	1.575 - 1.605 GHz
Frequency	-	1.598 - 1.605 GHz
Modulation or Protocol	-	GLONASS, GPS
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Package / Case	-	Module
Protocol	-	GPS, GLONASS
RF Family/Standard	-	Navigation
Sensitivity	-	-165 dBm
Serial Interfaces	-	UART, I2C, SPI
Supplied Contents	Board(s)	Board(s)
Supplier Device Package	-	Module
Type	GPS, GLONASS, Beidou, GNSS	GPS, GLONASS, Beidou, GNSS
Utilized IC / Part	-	MT3333
Voltage - Supply	-	4.3 V
Voltage - Supply	-	3 V

XA1110 AIRPRIME DEV KIT

Part	For Use With/Related Products	Supplied Contents	Type	Supplier Device Package	Sensitivity	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Frequency [Min]	Frequency	Frequency [Max]	Antenna Connector	Data Interface	Applications	Modulation or Protocol	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving	RF Family/Standard	Serial Interfaces	Protocol	Antenna Type	Data Rate	Utilized IC / Part
Sierra Wireless XA1110 DEV KIT_6001188	MT3333, XA1110	Board(s)	Beidou, GLONASS, GNSS, GPS
Sierra Wireless XA1110_1103608				Module	-165 dBm	Surface Mount	4.3 V	3 V	1.598 GHz	1.575 GHz	1.605 GHz	Castellation	SPI, UART	General Purpose	GLONASS, GPS	Module	85 °C	-40 °C	28 mA
Sierra Wireless XA1110_1103891					-165 dBm	Surface Mount	4.3 V	3 V	1575 MHz	1.605 GHz	1.598 GHz					Module	85 °C	-40 °C		Navigation	I2C, SPI, UART	GLONASS, GPS	Antenna Not Included	9.6 kbps	MT3333

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 61.86

General part information

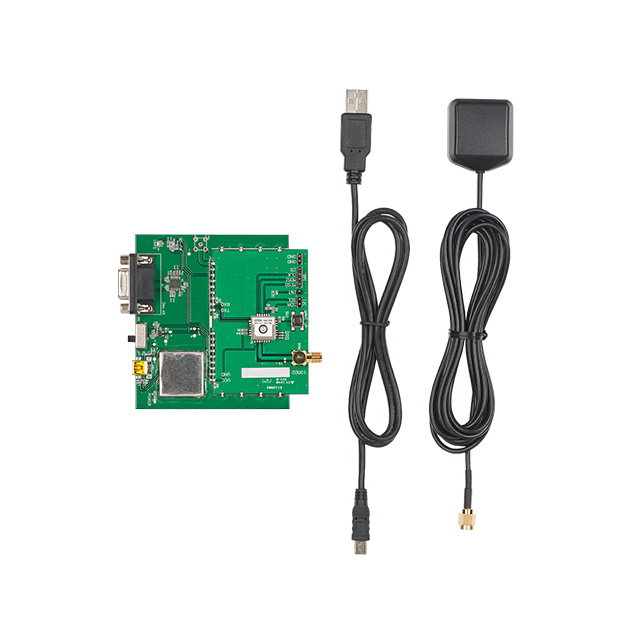

XA - AirPrime® MT3333, XA1110 GNSS (Beidou, GLONASS, GPS) Evaluation Board

Technical documentation and resources
