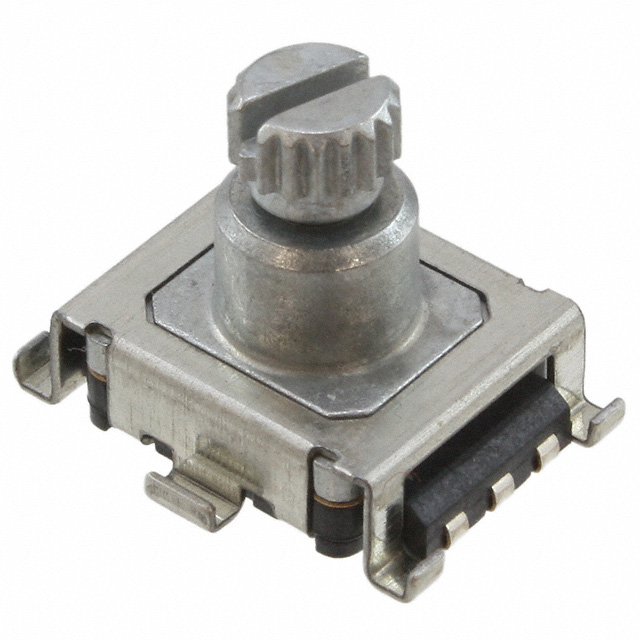

PEC11S-929K-H0015

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 15PPR

Search across all available documentation for this part.

Active

Bourns Inc.

ROTARY ENCODER MECHANICAL 15PPR

Technical Specifications

Parameters and characteristics for this part

Specification	PEC11S-929K-H0015

Actuator Type	Knurled End
Actuator Type [diameter]	6 mm
Built in Switch	True
Detent	True
Encoder Type	Mechanical
Mounting Type	Surface Mount
Orientation	Vertical
Output Type	Quadrature (Incremental)
Pulses per Revolution	15
Rotational Life (Cycles Min) [Min]	15K
Termination Style	SMD (SMT) Tab

Part	Mounting Type	Rotational Life (Cycles Min) [Min]	Orientation	Pulses per Revolution	Actuator Type [diameter]	Actuator Type	Output Type	Encoder Type	Termination Style
Bourns Inc. PEC11S-9215F-N0015	Surface Mount	15K	Vertical	15	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	SMD (SMT) Tab
Bourns Inc. PEC11S-9215K-H0015	Surface Mount	15K	Vertical	15	6 mm	Knurled End	Quadrature (Incremental)	Mechanical	SMD (SMT) Tab
Bourns Inc. PEC11S-929F-S0015	Surface Mount	15K	Vertical	15	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	SMD (SMT) Tab
Bourns Inc. PEC11S-9220F-S0015	Surface Mount	15K	Vertical	15	6 mm	Flatted End	Quadrature (Incremental)	Mechanical	SMD (SMT) Tab
Bourns Inc. PEC11S-929K-H0015	Surface Mount	15K	Vertical	15	6 mm	Knurled End	Quadrature (Incremental)	Mechanical	SMD (SMT) Tab
Bourns Inc. PEC11S-9215K-S0015	Surface Mount	15K	Vertical	15	6 mm	Knurled End	Quadrature (Incremental)	Mechanical	SMD (SMT) Tab

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Mechanical 15 Quadrature (Incremental) Vertical

Technical documentation and resources

No documents available
