D01-9900601

Active

Harwin Inc.

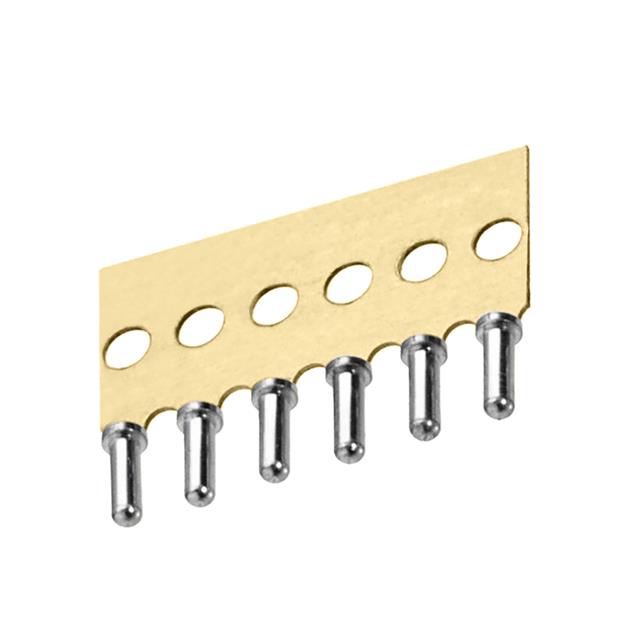

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSub Miniature Sockets Spec Sheet Datasheet

D01-9900601

Active

Harwin Inc.

SUB-MIN SKT/CARRIER ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsSub Miniature Sockets Spec Sheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D01-9900601

Contact Finish	Gold
Contact Material	Beryllium Copper
Features	Strip of 6
Flange Diameter [diameter]	1.45 mm
Flange Diameter [diameter]	0.057 in
Insertion Force [Max]	6 N
Insertion Force [Min]	2 N
Length - Overall [x]	0.142 in
Length - Overall [x]	3.61 mm
Mounting Hole Diameter [Max] [diameter]	1.09 mm
Mounting Hole Diameter [Max] [diameter]	0.043 in
Mounting Hole Diameter [Min] [diameter]	0.039 in
Mounting Hole Diameter [Min] [diameter]	0.99 mm
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-55 °C
Socket Depth [z]	3.15 mm
Socket Depth [z]	0.124 "
Tail Type	No Tail
Termination	Solder

D01-990 Series

Part	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Min] [diameter]	Mounting Hole Diameter [Max] [diameter]	Mounting Hole Diameter [Max] [diameter]	Contact Finish	Socket Depth [z]	Socket Depth [z]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Tail Type	Insertion Force [Min]	Insertion Force [Max]	Termination	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Max]	Operating Temperature [Min]	Features
Harwin Inc. D01-9901301	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C
Harwin Inc. D01-9902005	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C	Strip of 20
Harwin Inc. D01-9900401	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C	Strip of 4
Harwin Inc. D01-9900605	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C
Harwin Inc. D01-9900801	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C	Strip of 8
Harwin Inc. D01-9900901	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C	Strip of 9
Harwin Inc. D01-9901501	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C	Strip of 15
Harwin Inc. D01-9902201	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C
Harwin Inc. D01-9900505	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C	Strip of 5
Harwin Inc. D01-9903201	0.039 in	0.99 mm	1.09 mm	0.043 in	Gold	3.15 mm	0.124 "	1.45 mm	0.057 in	Beryllium Copper	No Tail	2 N	6 N	Solder	0.142 in	3.61 mm	100 °C	-55 °C	Strip of 32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	600	$ 1.65
Newark	Each	500	$ 2.06
		1000	$ 1.89
		2500	$ 1.71

Description

General part information

D01-990 Series

Pin Receptacle Connector 0.016" ~ 0.020" (0.41mm ~ 0.51mm) No Tail Solder

Documents

Technical documentation and resources

Sub Miniature Sockets Spec Sheet

Datasheet
