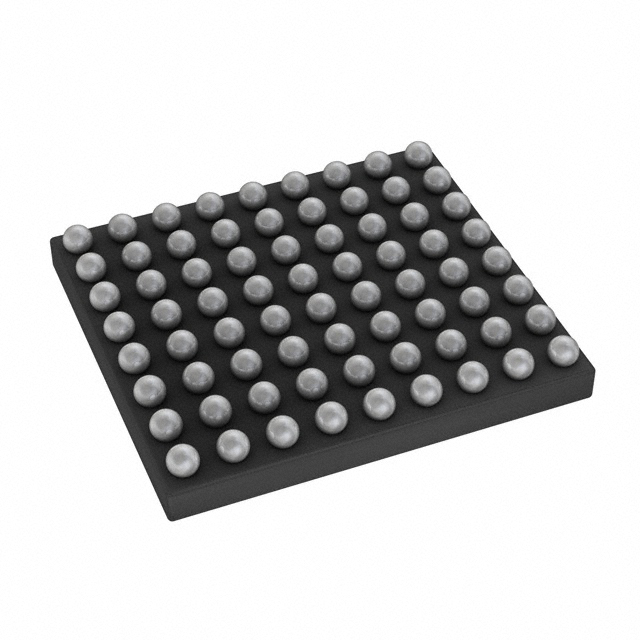

WM8994ECS/R

Active

Cirrus Logic Inc.

IC CODEC AUD HUB MULTI-CH 72WCSP

Search across all available documentation for this part.

Active

Cirrus Logic Inc.

IC CODEC AUD HUB MULTI-CH 72WCSP

Technical Specifications

Parameters and characteristics for this part

Specification	WM8994ECS/R

Data Interface	PCM, I2S
Mounting Type	Surface Mount
Number of ADCs / DACs [custom]	4
Number of ADCs / DACs [custom]	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	WLCSP, 72-UFBGA
Resolution (Bits)	24 b
S/N Ratio, ADCs / DACs (db) Typ [custom]	95 db
S/N Ratio, ADCs / DACs (db) Typ [custom]	100 db
Sigma Delta	True
Supplier Device Package	72-WCSP
Supplier Device Package [x]	4.52
Supplier Device Package [y]	4.03
Type	Stereo Audio
Voltage - Supply, Analog [Max]	2 V
Voltage - Supply, Analog [Min]	1.71 V
Voltage - Supply, Digital [Max]	3.6 V
Voltage - Supply, Digital [Min]	1.62 V

IC CODEC AUD HUB MULTI-CH 72WCSP

Part	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Data Interface	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Sigma Delta	S/N Ratio, ADCs / DACs (db) Typ [custom]	S/N Ratio, ADCs / DACs (db) Typ [custom]	Type	Resolution (Bits)	Supplier Device Package [y]	Supplier Device Package [x]	Supplier Device Package	Mounting Type	Package / Case
Cirrus Logic Inc. WM8994ECS/R	1.62 V	3.6 V	85 °C	-40 °C	4	2	I2S, PCM	2 V	1.71 V		95 db	100 db	Stereo Audio	24 b	4.03	4.52	72-WCSP	Surface Mount	72-UFBGA, WLCSP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Stereo Audio Interface 24 b I2S, PCM 72-WCSP (4.52x4.03)
