CONN MCX JACK STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN MCX JACK STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	1-1337588-0

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MCX
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms

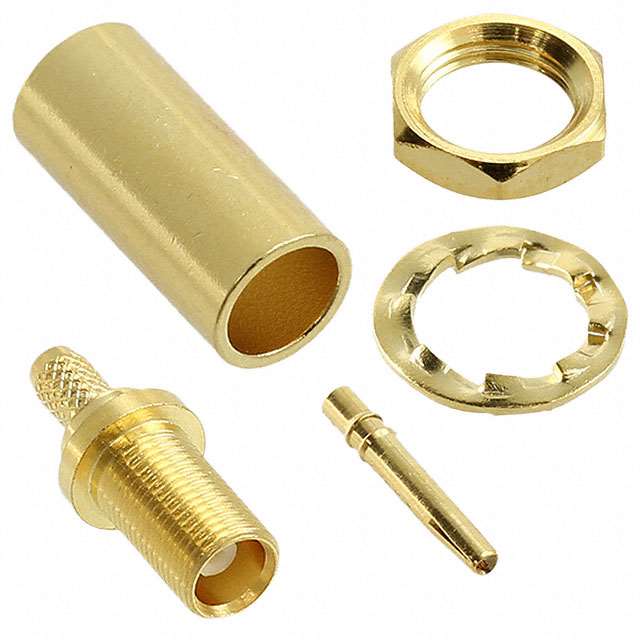

Includes	1 Connector, 1 Lockwasher, 1 Ferrule, 1 Contact, 1 Nut
Insertion Loss	0.1 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	335 V

CONN MCX JACK STR 50 OHM CRIMP

Part	Connector Style	Center Contact Plating	Dielectric Material	Mating Cycles	Contact Termination	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Impedance	Body Material	Insertion Loss	Body Finish	Housing Color	Number of Ports	Connector Type	Cable Group	Center Contact Material	Fastening Type	Includes	Frequency - Max [Max]	Voltage Rating	Shield Termination
TE Connectivity AMP Connectors 1-1337588-0	MCX	Gold	Polytetrafluoroethylene (PTFE)	500	Crimp	Bulkhead - Front Side Nut	155 °C	-55 °C	50 Ohms	Brass	0.1 dB	Gold	Gold	1	Female Socket, Jack	188A, 316, RG-174A	Beryllium Copper	Snap-On	1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut	6000 MHz	335 V	Crimp
