1057151-1

Active

TE Connectivity AMP Connectors

CONN N JACK STR 50 OHM SOLDER

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN N JACK STR 50 OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	1057151-1

Body Material	Stainless Steel
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	10 pcs, 1 Insulator, 2 Nuts, 1 Lockwasher, 2 Gaskets, 1 Bushing, 1 Clamp, 1 Connector, 1 Contact
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	1000 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

CONN N JACK STR 50 OHM SOLDER

Part	Number of Ports	Impedance	Connector Style	Includes	Voltage Rating	Frequency - Max [Max]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Housing Color	Center Contact Material	Mating Cycles	Shield Termination	Mounting Feature	Connector Type	Center Contact Plating	Cable Group	Cable Group	Body Material
TE Connectivity AMP Connectors 1057151-1	1	50 Ohms	N Type	1 Bushing, 1 Clamp, 1 Connector, 1 Contact, 1 Insulator, 1 Lockwasher, 10 pcs, 2 Gaskets, 2 Nuts	1000 VDC	11 GHz	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	Solder	Silver	Beryllium Copper	500	Clamp	Bulkhead - Front Side Nut	Female Socket, Jack	Gold	0.25 in	RG-401	Stainless Steel

General part information

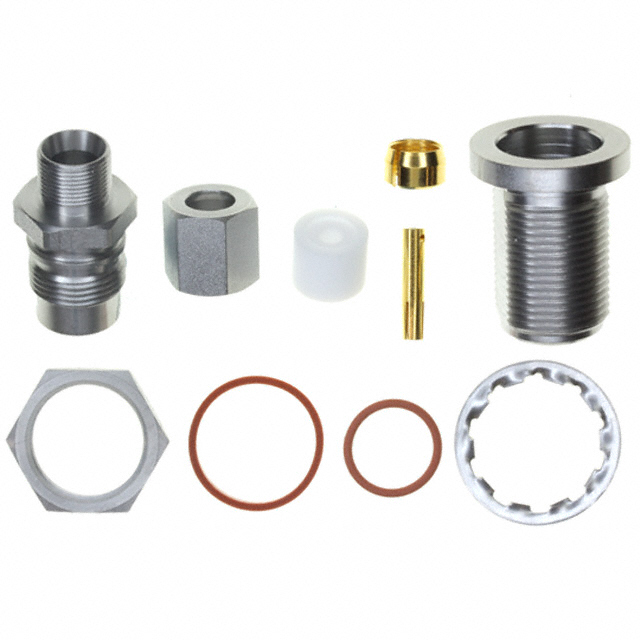

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
