2HX-125-2-WT-2

Active

BRADY

SLEEVE, 0.125 IN DIA X 1 IN W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2HX-125-2-WT-2

Active

BRADY

SLEEVE, 0.125 IN DIA X 1 IN W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1854.30

Description

General part information

2HX-125 Series

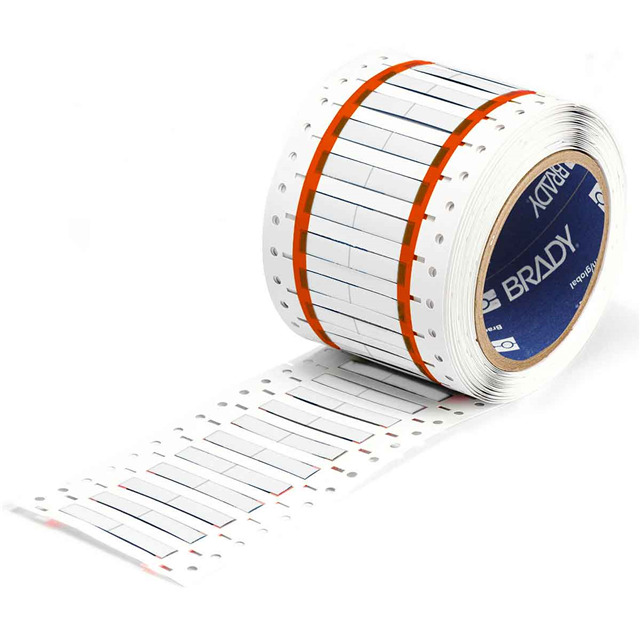

White Heat Shrinkable Label 1.00" W x 0.13" Dia (25.4mm x 3.2mm); Cable O.D. 0.06" ~ 0.11" (1.6mm ~ 2.8mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2HX-125-2-WT-2	2HX-125 Series

Color	White	White, Black, Yellow
Label Size	-	0.06 - 0.13 in
Label Size	-	0.5 - 2.3 "
Label Size	-	0.11 in
Label Size	-	0.06 in
Label Size	-	0.11 "
Label Size	-	0.06 in
Label Size	-	1.6 mm
Label Size	-	2.8 mm
Label Size [diameter]	0.13 in, 3.2 mm	0.13 - 3.2 mm
Label Size [Max]	2.8 mm, 0.11 in	0.11 - 2.8 in
Label Size [Min]	0.06 ", 1.6 mm	0.06 - 1.6 "
Label Size [x]	25.4 mm	0.67 - 58.4 mm
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C

2HX-125 Series

SLEEVE, 0.125 IN DIA X 0.5 IN W

Part	Label Size [diameter]	Label Size [diameter]	Label Size [x]	Label Size [x]	Color	Label Type	Material	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [Max]	Label Size [Min]	Label Size [Max]	Label Size [Min]
BRADY 2HX-125-2-WT-J-4	0.06 in, 0.11 in, 0.13 in	1.6 mm, 2.8 mm, 3.2 mm	12.7 mm	0.5 "	White	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C
BRADY 2HX-125-2-BK-3		0.13 in, 3.2 mm	0.67 in, 17 mm		Black	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C	0.11 in, 2.8 mm	0.06 ", 1.6 mm
BRADY 2HX-125-2-BK-4	0.06 in, 0.11 in, 0.13 in	1.6 mm, 2.8 mm, 3.2 mm	12.7 mm	0.5 "	Black	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C
BRADY 2HX-125-2-WT-SC	0.13 in	3.2 mm	50.8 mm	2 "	White	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C	2.8 mm	1.6 mm	0.11 in	0.06 in
BRADY 2HX-125-2.3-YL	0.13 in	3.2 mm	58.4 mm	2.3 in	Yellow	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C	2.8 mm	1.6 mm	0.11 in	0.06 in
BRADY 2HX-125-2-YL-3		0.13 in, 3.2 mm	0.67 in, 17 mm		Yellow	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C	0.11 in, 2.8 mm	0.06 ", 1.6 mm
BRADY 2HX-125-2-YL-J	0.13 in	3.2 mm	50.8 mm	2 "	Yellow	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C	2.8 mm	1.6 mm	0.11 in	0.06 in
BRADY 2HX-125-2-WT-2		0.13 in, 3.2 mm	25.4 mm		White	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C	0.11 in, 2.8 mm	0.06 ", 1.6 mm
BRADY 2HX-125-2-WT-4	0.06 in, 0.11 in, 0.13 in	1.6 mm, 2.8 mm, 3.2 mm	12.7 mm	0.5 "	White	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C
BRADY 2HX-125-2-WT	0.13 in	3.2 mm	50.8 mm	2 "	White	Heat Shrinkable	Polyolefin (PO)	-40 °C	120 °C	2.8 mm	1.6 mm	0.11 in	0.06 in
