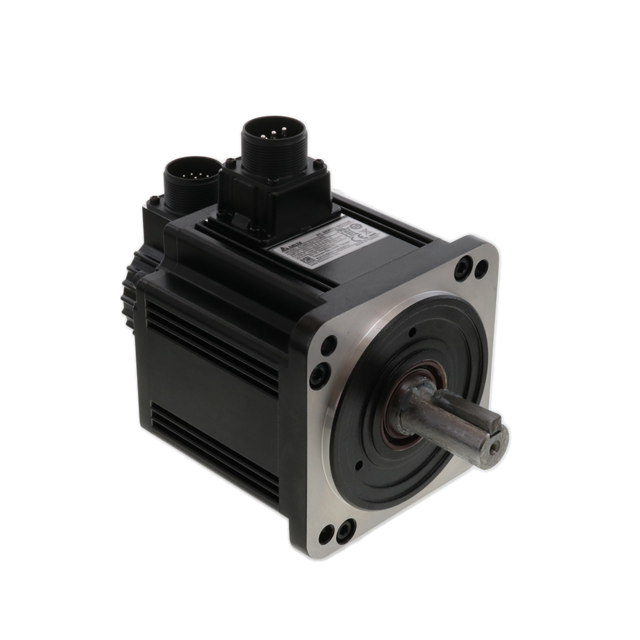

ECMA-E21315RS

Active

Delta Electronics/Industrial Automation

SERVOMOTOR 2000 RPM 220V

Deep-Dive with AI

Search across all available documentation for this part.

ECMA-E21315RS

Active

Delta Electronics/Industrial Automation

SERVOMOTOR 2000 RPM 220V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 688.28
		5	$ 669.94

Description

General part information

ECMA-E Series

AC Motor Servomotor 2000 RPM 1.5kW Incremental 220VAC

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ECMA-E21315RS	ECMA-E Series

Approval Agency	CE, cURus	CE, cURus
Diameter - Shaft	-	35 mm
Diameter - Shaft [diameter]	0.866 in	0.866 in
Diameter - Shaft [diameter]	22 mm	1.378 - 22 in
Encoder Type	Incremental	Incremental, Absolute
Features	Key, Oil Seal	Key, Oil Seal, Brake
Function	Servomotor	Servomotor
Length - Shaft and Bearing [x]	55 mm	55 - 79 mm
Length - Shaft and Bearing [x]	2.165 in	2.165 - 3.11 in
Mounting Hole Spacing	5.709 in	5.709 in
Mounting Hole Spacing	145 mm	7.874 - 145 "
Mounting Hole Spacing	-	200 mm
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Power - Rated	1500 W	2 - 1500 kW
RPM	2000 RPM	2000 RPM
Size / Dimension [x]	5.118 in	5.118 - 7.087 "
Size / Dimension [x]	130 mm	130 - 180 mm
Size / Dimension [y]	130 mm	130 - 180 mm
Size / Dimension [y]	5.118 "	5.118 - 7.087 in
Termination Style	Cable with Connector	Cable with Connector
Torque - Max Momentary (oz-in / mNm)	21480 mNm	7160 - 42970 mNm
Torque - Max Momentary (oz-in / mNm)	3042 oz-in	1014 - 6085 oz-in
Torque - Rated (oz-in / mNm)	1014 oz-in	338.5 - 2028 oz-in
Torque - Rated (oz-in / mNm)	7160 mNm	2390 - 14320 mNm
Type	AC Motor	AC Motor
Voltage - Rated	220 VAC	220 VAC

ECMA-E Series

SERVOMOTOR 2000 RPM 220V

Part	Encoder Type	RPM	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Power - Rated	Mounting Hole Spacing	Mounting Hole Spacing	Features	Operating Temperature [Max]	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Termination Style	Type	Voltage - Rated	Function	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Mounting Hole Spacing	Diameter - Shaft [diameter]
Delta Electronics/Industrial Automation ECMA-E21830RS	Incremental	2000 RPM	42970 mNm	6085 oz-in	79 mm	3.11 in	3 kW	7.874 "	200 mm	Key, Oil Seal	40 °C	1.378 in	35 mm	Cable with Connector	AC Motor	220 VAC	Servomotor	180 mm	180 mm	7.087 in	7.087 "	CE, cURus	2028 oz-in	14320 mNm
Delta Electronics/Industrial Automation ECMA-E11315RS	Incremental	2000 RPM	21480 mNm	3042 oz-in	55 mm	2.165 in	1500 W	145 mm		Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	1014 oz-in	7160 mNm	5.709 in	0.866 in
Delta Electronics/Industrial Automation ECMA-EA1320RS	Absolute	2000 RPM	28650 mNm	4057 oz-in	55 mm	2.165 in	2 kW	145 mm		Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	1352 oz-in	9550 mNm	5.709 in	0.866 in
Delta Electronics/Industrial Automation ECMA-E21320SS	Incremental	2000 RPM	28650 mNm	4057 oz-in	55 mm	2.165 in	2 kW	145 mm		Brake, Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	1352 oz-in	9550 mNm	5.709 in	0.866 in
Delta Electronics/Industrial Automation ECMA-EA1315SS	Absolute	2000 RPM	21480 mNm	3042 oz-in	55 mm	2.165 in	1500 W	145 mm		Brake, Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	1014 oz-in	7160 mNm	5.709 in	0.866 in
Delta Electronics/Industrial Automation ECMA-EA1320SS	Absolute	2000 RPM	28650 mNm	4057 oz-in	55 mm	2.165 in	2 kW	145 mm		Brake, Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	1352 oz-in	9550 mNm	5.709 in	0.866 in
Delta Electronics/Industrial Automation ECMA-E11305RS	Incremental	2000 RPM	7160 mNm	1014 oz-in	55 mm	2.165 in	500 W	145 mm		Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	338.5 oz-in	2390 mNm	5.709 in	0.866 in
Delta Electronics/Industrial Automation ECMA-E21320RS	Incremental	2000 RPM	28650 mNm	4057 oz-in	55 mm	2.165 in	2 kW	145 mm		Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	1352 oz-in	9550 mNm	5.709 in	0.866 in
Delta Electronics/Industrial Automation ECMA-E11310RS	Incremental	2000 RPM	14300 mNm	2025 oz-in	55 mm	2.165 in	1000 W	145 mm		Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	675.5 oz-in	4770 mNm	5.709 in	0.866 in
Delta Electronics/Industrial Automation ECMA-EA1305SS	Absolute	2000 RPM	7160 mNm	1014 oz-in	55 mm	2.165 in	500 W	145 mm		Brake, Key, Oil Seal	40 °C	22 mm		Cable with Connector	AC Motor	220 VAC	Servomotor	130 mm	130 mm	5.118 "	5.118 in	CE, cURus	338.5 oz-in	2390 mNm	5.709 in	0.866 in
