A89103KETSR-5
ActiveAllegro MicroSystems
GATE DRIVERS AUTOMOTIVE THREE-PHASE ISOLATOR AND BATTERY DISCONNECT MOSFET DRIVER
A89103KETSR-5
ActiveAllegro MicroSystems
GATE DRIVERS AUTOMOTIVE THREE-PHASE ISOLATOR AND BATTERY DISCONNECT MOSFET DRIVER
Description
General part information
A89103 Series

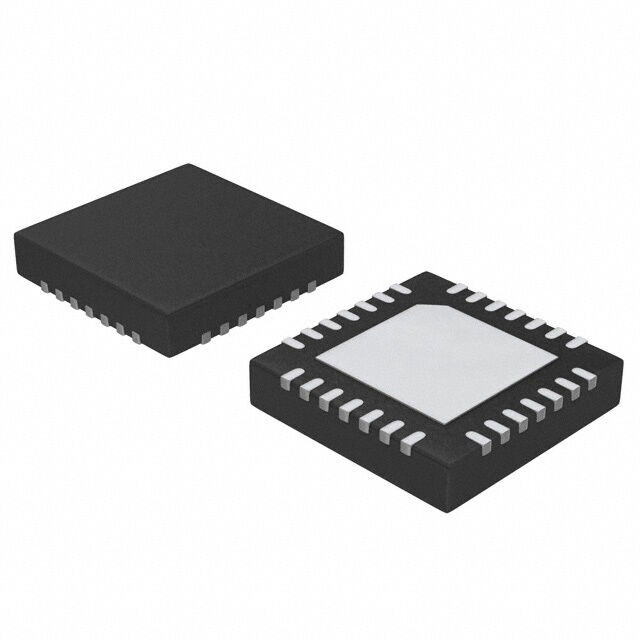

Gate Driver Optical Coupling 2 Channel 28-QFN (5x5)
Technical Specifications
Parameters and characteristics for this part
| Specification | A89103KETSR-5 |
|---|---|
| Channel Type | 3-Phase |
| Driven Configuration | Floating |
| Fall Time (Typ) | 150 ns |
| Gate Channel | N-Channel |
| Gate Type | MOSFET |
| Grade | Automotive |
| Input Type | Non-Inverting |
| Logic Voltage - VIH | 2 V |
| Logic Voltage - VIL | 0.8 V |
| Mounting Type | Surface Mount |
| Number of Channels | 2 |
| Number of Drivers | 3 |
| Operating Temperature (Max) | 150 °C, 150 °C |
| Operating Temperature (Min) | -40 °C, -40 °C |
| Package / Case | 28-VFQFN Exposed Pad |
| Package Length | 5 mm |
| Package Name | 28-QFN |
| Package Width | 5 mm |
| Propagation Delay tpHL (Max) | 850 ns |
| Propagation Delay tpLH (Max) | 400 ns |
| Qualification | AEC-Q100 |
| Rise Time (Typ) | 1.2 µs |
| Technology | Optical Coupling |
| Voltage - Output Supply (Max) | 85 V |
| Voltage - Output Supply (Min) | 4.5 V |
| Voltage - Supply (Maximum) | 85 V |
| Voltage - Supply (Minimum) | 4.5 V |
