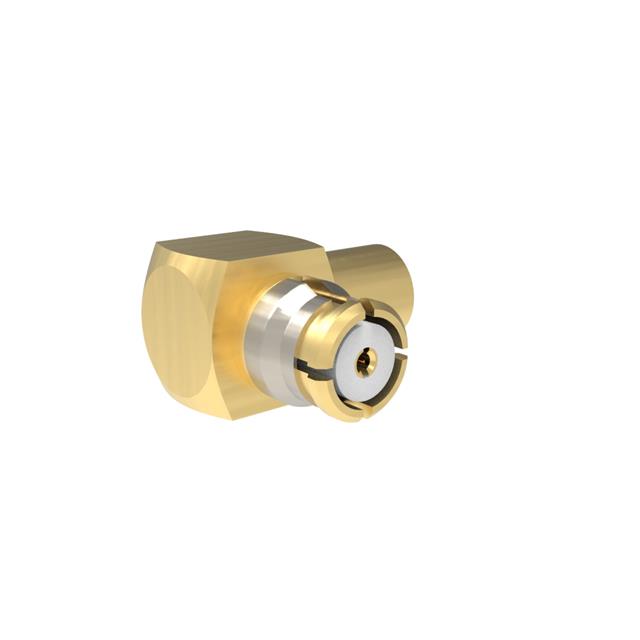

SMP-FR-C07-2-R

Active

AMPHENOL RF

SMP RIGHT ANGLE SOLDER PLUG 0.08

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SMP-FR-C07-2-R

Active

AMPHENOL RF

SMP RIGHT ANGLE SOLDER PLUG 0.08

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.06
		10	$ 13.35
		25	$ 12.84
		50	$ 12.33
		100	$ 11.64
		250	$ 10.61
		500	$ 9.93
		1000	$ 9.11

Description

General part information

SMP-FR Series

SMP Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SMP-FR-C07-2-R	SMP-FR Series

Body Finish	Gold	Gold
Body Material	Beryllium Copper	Beryllium Copper, Brass
Cable Group	Semi Rigid, RG-405	Semi Rigid, RG-405, RG-174, 316, RG-178, RD-316
Cable Group	-	0.047 in
Cable Group [Max]	0.086 in	0.086 in
Cable Group [Min]	0.085 in	0.085 in
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Type	Plug, Female Socket	Plug, Female Socket, Male Pin
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE), Polyoxymethylene (POM) Acetal
Fastening Type	Snap-On	Snap-On
Frequency - Max [Max]	26.5 GHz	26.5 GHz
Housing Color	Gold	Gold, Silver
Impedance	50 Ohms	50 Ohms
Includes	-	Ferrule, Insulator, Connector, End Cap, 1 End Cap, 1 Connector
Includes	-	1 pcs
Includes	-	1 pcs
Includes	-	1 pcs
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Ports	1	1
Operating Temperature [Max]	165 °C	155 - 165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	Solder	Solder, Crimp
Voltage Rating	335 V	335 V

SMP-FR Series

SMP RIGHT ANGLE SOLDER PLUG 0.08

Part	Number of Ports	Cable Group	Cable Group [Min]	Cable Group [Max]	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Center Contact Plating	Voltage Rating	Center Contact Material	Contact Termination	Fastening Type	Body Material	Mounting Type	Shield Termination	Dielectric Material	Frequency - Max [Max]	Housing Color	Connector Type	Includes	Includes [custom]	Includes [custom]	Includes [custom]	Cable Group
AMPHENOL RF SMP-FR-C07-2-R	1	RG-405, Semi Rigid	0.085 in	0.086 in	Gold	-65 ░C	165 °C	50 Ohms	Gold	335 V	Beryllium Copper	Solder	Snap-On	Beryllium Copper	Free Hanging (In-Line), Right Angle	Solder	Polytetrafluoroethylene (PTFE)	26.5 GHz	Gold	Female Socket, Plug
AMPHENOL RF SMP-FR-C08-1	1	316, RG-174			Gold	-65 ░C	165 °C	50 Ohms	Gold		Beryllium Copper	Solder	Snap-On	Beryllium Copper, Brass	Free Hanging (In-Line), Right Angle	Crimp	Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)	26.5 GHz	Gold	Female Socket, Plug	Connector, End Cap, Ferrule, Insulator
AMPHENOL RF SMP-FR-C19	1	RG-178			Gold	-65 ░C	165 °C	50 Ohms	Gold		Beryllium Copper	Solder	Snap-On	Beryllium Copper	Free Hanging (In-Line), Right Angle	Solder	Polytetrafluoroethylene (PTFE)	26.5 GHz	Silver	Male Pin, Plug		1 pcs	1 pcs	1 pcs
AMPHENOL RF SMP-FR-C06	1	Semi Rigid			Gold	-65 ░C	155 °C	50 Ohms	Gold		Beryllium Copper	Solder	Snap-On	Beryllium Copper	Free Hanging (In-Line), Right Angle	Solder	Polytetrafluoroethylene (PTFE)	26.5 GHz	Gold	Female Socket, Plug	1 Connector, 1 End Cap				0.047 in
AMPHENOL RF SMP-FR-B2	1	RD-316			Gold	-65 ░C	165 °C	50 Ohms	Gold		Beryllium Copper	Solder	Snap-On	Brass	Free Hanging (In-Line), Right Angle	Crimp	Polytetrafluoroethylene (PTFE)	26.5 GHz	Gold	Female Socket, Plug	Connector, End Cap, Ferrule, Insulator
AMPHENOL RF SMP-FR-C07	1	RG-405, Semi Rigid	0.085 in	0.086 in	Gold	-65 ░C	155 °C	50 Ohms	Gold		Beryllium Copper	Solder	Snap-On	Beryllium Copper	Free Hanging (In-Line), Right Angle	Solder	Polytetrafluoroethylene (PTFE)	26.5 GHz	Gold	Female Socket, Plug	1 Connector, 1 End Cap
