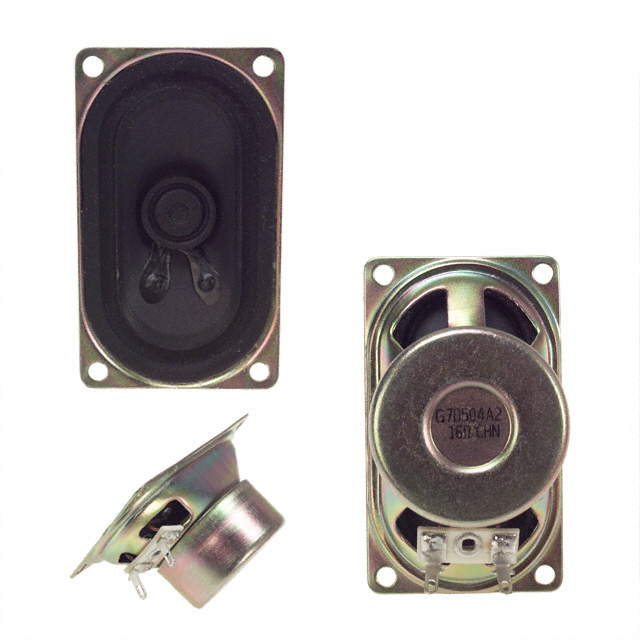

EAS-G7D504A2
ObsoletePanasonic Industrial Automation Sales
SPEAKER 16OHM 1.5W TOP PORT 90DB
Deep-Dive with AI
Search across all available documentation for this part.
EAS-G7D504A2
ObsoletePanasonic Industrial Automation Sales
SPEAKER 16OHM 1.5W TOP PORT 90DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EAS-G7D504A2 |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 250 Hz |
| Height - Seated (Max) [Max] [z] | 1.295 in |
| Height - Seated (Max) [Max] [z] | 32.9 mm |
| Impedance | 16 Ohms |
| Port Location | Top |
| Power - Rated | 1.5 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension [x] | 90 mm, 3.543 " |
| Size / Dimension [y] | 41 mm, 1.614 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Full Range |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
EAS-G7 Series
16 Ohms Full Range Speaker 1.5 W 250 Hz ~ 10 kHz Top Oval, Rectangular Frame
Documents
Technical documentation and resources
No documents available
