BSN18-C
ActivePanduit Corp

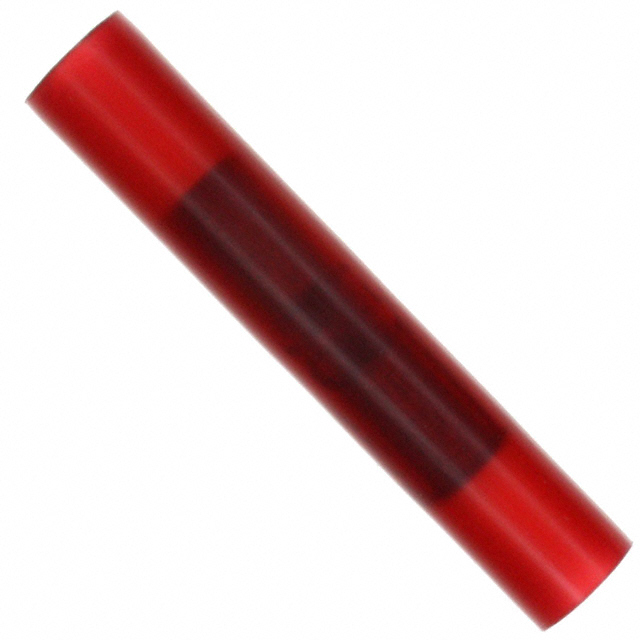

CONN SPLICE 18-22 AWG CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
BSN18-C
ActivePanduit Corp
CONN SPLICE 18-22 AWG CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BSN18-C | BSN18 Series |
|---|---|---|
| Color | Red | Red |
| Features | - | Brazed Seam |
| Insulation | Fully Insulated | Fully Insulated |
| Number of Wire Entries | 2 | 2 |
| Terminal Type | Butt Splice, Inline, Individual Openings | Butt Splice, Inline, Individual Openings |
| Termination | Crimp | Crimp |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 17.5 AWG | 16 - 17.5 AWG |
BSN18 Series
BUTT SPLICE, RED, BSN SERIES, 22 AWG, 16 AWG, 1.5 MM², NYLON (POLYAMIDE)
| Part | Features | Insulation | Wire Gauge [Max] | Wire Gauge [Min] | Color | Number of Wire Entries | Termination | Terminal Type |
|---|---|---|---|---|---|---|---|---|
Panduit Corp BSN18-3K | Brazed Seam | Fully Insulated | 22 AWG | 16 AWG | Red | 2 | Crimp | Butt Splice, Individual Openings, Inline |
Panduit Corp BSN18-C | Fully Insulated | 22 AWG | 17.5 AWG | Red | 2 | Crimp | Butt Splice, Individual Openings, Inline |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.95 | |
| 10 | $ 0.92 | |||
| 100 | $ 0.84 | |||
| 1000 | $ 0.75 | |||
| 5000 | $ 0.70 | |||
| 10000 | $ 0.68 | |||
Description
General part information
BSN18 Series
Terminal Butt Splice, Inline, Individual Openings Connector Crimp 18-22 AWG Red
