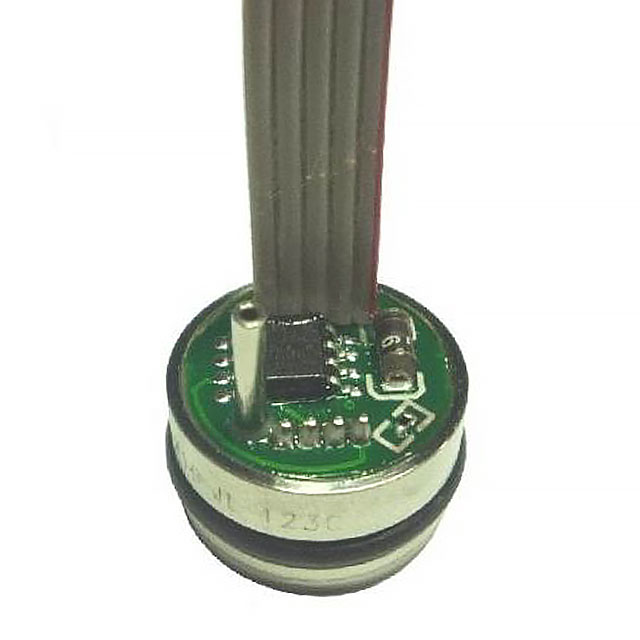

86BSD150PA-3AIC

Obsolete

TE Connectivity Measurement Specialties

SENSOR 150PSIA 14BIT

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 150PSIA 14BIT

Technical Specifications

Parameters and characteristics for this part

Specification	86BSD150PA-3AIC

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	2068.43 kPa
Maximum Pressure [Max]	300 PSI
Operating Pressure	1034.21 kPa
Operating Pressure	150 PSI
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output	14 b
Output Type	I2C
Package / Case	Module
Port Style	No Port
Termination Style	Cable with Connector
Voltage - Supply	3.3 V

Part	Pressure Type	Applications	Port Style	Output	Package / Case	Termination Style	Output Type	Accuracy	Features	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure [custom]	Operating Pressure [custom]	Maximum Pressure [Max]	Maximum Pressure [Max]	Voltage - Supply	Operating Pressure	Operating Pressure
TE Connectivity Measurement Specialties 86BSD015PG-3AIC	Vented Gauge	Board Mount	No Port	14 b	Module	Cable with Connector	I2C SPI	0.25 %	Amplified Output Temperature Compensated	125 °C	-40 °C	15 PSI	103.42 kPa	30 PSI	206.84 kPa	3.3 V
TE Connectivity Measurement Specialties 86BSD030PA-3AIC		Board Mount	No Port	14 b	Module	Cable with Connector	I2C SPI	0.25 %	Amplified Output Temperature Compensated	125 °C	-40 °C			60 PSI	413.69 kPa	3.3 V	206.84 kPa	30 PSI
TE Connectivity Measurement Specialties 86BSD150PA-3AIC		Board Mount	No Port	14 b	Module	Cable with Connector	I2C	0.25 %	Amplified Output Temperature Compensated	125 °C	-40 °C			300 PSI	2068.43 kPa	3.3 V	1034.21 kPa	150 PSI

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 150PSI (1034.21kPa) Absolute 14 b Module

Technical documentation and resources

No documents available
