CLA100E1200TZ-TUB

Active

IXYS

THYRISTOR SCR 1200V 100A TO268AA

Search across all available documentation for this part.

Active

IXYS

THYRISTOR SCR 1200V 100A TO268AA

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CLA100E1200TZ-TUB	CLA100 Series

Current - Gate Trigger (Igt) (Max) [Max]	40 mA	40 - 50 mA
Current - Hold (Ih) (Max) [Max]	100 mA	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	1500 A
Current - Non Rep. Surge 50, 60Hz (Itsm)	-	1620 A
Current - On State (It (AV)) (Max) [Max]	100 A	100 A
Current - On State (It (RMS)) (Max)	160 A	160 A
Current - On State (It (RMS)) (Max)	-	150 A
Mounting Type	Surface Mount	Surface Mount, Chassis, Stud Mount
Number of SCRs, Diodes	-	1
Operating Temperature [Max]	125 ¯C	125 - 150 ¯C
Operating Temperature [Min]	-40 °C	-40 °C

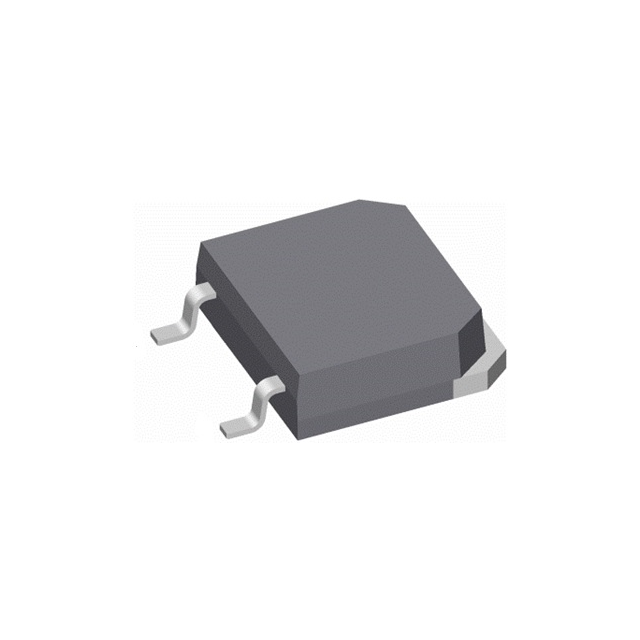

Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3, SOT-227-4, miniBLOC
SCR Type	Standard Recovery	Standard Recovery
Structure	-	Series Connection - SCR/Diode
Supplier Device Package	TO-268AA (D3Pak-HV)	TO-268AA (D3Pak-HV)
Voltage - Gate Trigger (Vgt) (Max) [Max]	1.5 V	1.5 V
Voltage - Off State	1.2 kV	1.2 kV

THYRISTOR SCR 1200V 100A TO268AA

Part	Voltage - Gate Trigger (Vgt) (Max) [Max]	SCR Type	Current - On State (It (RMS)) (Max)	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Off State	Current - Hold (Ih) (Max) [Max]	Supplier Device Package	Mounting Type	Structure	Number of SCRs, Diodes	Current - On State (It (RMS)) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]
IXYS CLA100E1200TZ-TUB	1.5 V	Standard Recovery	160 A	D3PAK (2 Leads + Tab), TO-268-3, TO-268AA	40 mA	100 A	-40 °C	125 ¯C	1.2 kV	100 mA	TO-268AA (D3Pak-HV)	Surface Mount
IXYS CLA100PD1200NA	1.5 V			SOT-227-4, miniBLOC	50 mA	100 A	-40 °C	150 °C	1.2 kV	100 mA		Chassis, Stud Mount	Series Connection - SCR/Diode	1	150 A	1500 A	1620 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR 1.2 kV 160 A Standard Recovery Surface Mount TO-268AA (D3Pak-HV)
