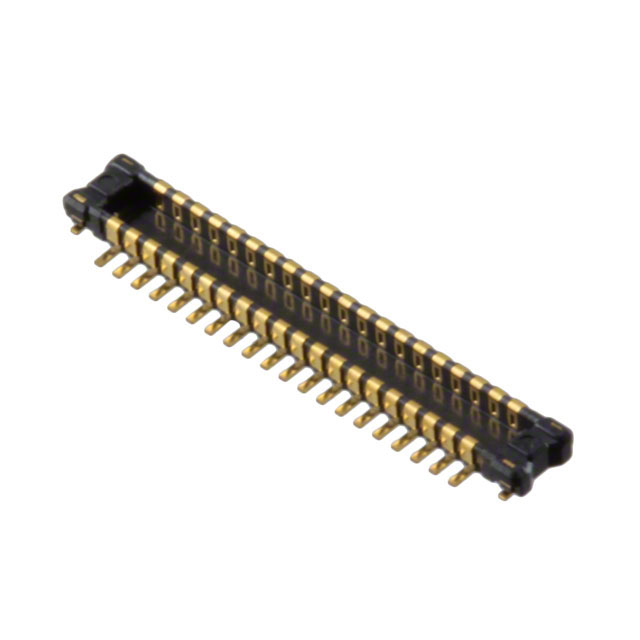

AXE640124
ActivePanasonic Electric Works
CONN HDR 40POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXE640124
ActivePanasonic Electric Works
CONN HDR 40POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXE640124 |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Features | Solder Retention |
| Height Above Board | 0.026 in |
| Height Above Board | 0.65 mm |
| Mated Stacking Heights | 0.8 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.78 | |
| 10 | $ 1.55 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.45 | |||
| 100 | $ 1.39 | |||
| 250 | $ 1.26 | |||
| 500 | $ 1.16 | |||
| 1000 | $ 0.99 | |||
| 2500 | $ 0.92 | |||
| Digi-Reel® | 1 | $ 1.78 | ||
| 10 | $ 1.55 | |||
| 25 | $ 1.49 | |||
| 50 | $ 1.45 | |||
| 100 | $ 1.39 | |||
| 250 | $ 1.26 | |||
| 500 | $ 1.16 | |||
| 1000 | $ 0.99 | |||
| 2500 | $ 0.92 | |||
| Tape & Reel (TR) | 5000 | $ 0.87 | ||
| 10000 | $ 0.85 | |||
Description
General part information
AXE640 Series
40 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
